18m3 Electric Cargo Van Pure 310km Fast & Slow Charging Transportation Truck

18m3 Electric Cargo Van Pure 310km Fast & Slow Charging Transportation Truck

18m3 Electric Cargo Van

Electric 310km Cargo Van

Slow Charging Transportation Truck Cargo Van

Place of Origin:

China

Brand Name:

New Gonow

Model Number:

HK01 Fence

Contact Us
Request A Quote
Product Details
Product Name:
18m³ Electric Cargo Van Pure Electric 310km Fast & Slow Charging Transportation Truck
Overall Dimensions:
5995×2150/2200×2425
Interior Dimension Of Cargo Compartment (mm):
4150×2090×400
Kerb Mass (kg):
2750
Carrying Mass (kg):
1615
Total Mass (kg):
4495
Maximum Vehicle Speed (km/h):
≥100
Maximum Gradient:
≥25%
Constant Speed Range (constant Speed Method) (km):
≥310
Charging Time (h) (80%):
Fast Charging ≤ 2h; Slow Charging ≤ 13h
Battery Type:
Lithium Iron Phosphate
Motor Type:
Permanent Magnet Synchronous Motor
Payment & Shipping Terms
Minimum Order Quantity
10
Price
Negotiable
Packaging Details
5428*1780*1950mm
Delivery Time
8 work days
Payment Terms
T/T
Supply Ability
200 units per month
Product Description

18m³ Electric Cargo Van Pure Electric 310km Fast & Slow Charging Transportation Truck



Specification sheet:









HK01 parameter and configuration table

Basic parameters

Type

Breast board (fence)

Wheelbase (mm)

3360

Overall dimension (mm)

5995*2180*2425/2795

Kerb mass (kg)

2750

Rated load capacity (kg)

1745

Total mass (kg)

4495

Number of Seats

2

Maximum vehicle speed (km/h)

≥100

Maximum gradient

≥25%

Constant speed range (constant speed method) (km)

≥310

Interior dimension of cargo compartment (mm)

4150×2090×400

Cabinet material

Steel

Tyre specification

7.00R16LT 10PR

New energy system

Battery

Battery brand

Lishen

Battery type

Lithium iron phosphate

Total battery energy (kWh)

80.64

Battery cooling mode

Natural cooling

Drive motor

Motor type

Permanent magnet synchronization

Motor rated/peak power (kW)

58/130

Motor cooling method

Liquid cooling

Charging method

Fast/slow charging

Slow charge gun

O

Charging time (h) (80%)

Fast charging ≤ 2h; Slow charging ≤ 13h

Battery motor heat

Other configurations

AM/FM

MP3

USB

SD card slot

Ashtray

Cigarette lighter

Cup holder

Door ajar reminder

Low speed alarm

Remote monitoring

ABS anti lock

Brake force distribution

Shroud

O

Rear reversing radar

O

Reverse video image

O

●: Standard O: Optional -: Not available
Note: The actual range varies depending on the ambient temperature, road conditions, vehicle carrying capacity, and driving habits of the driver.

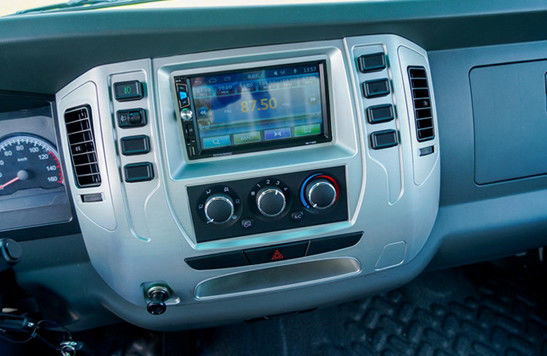

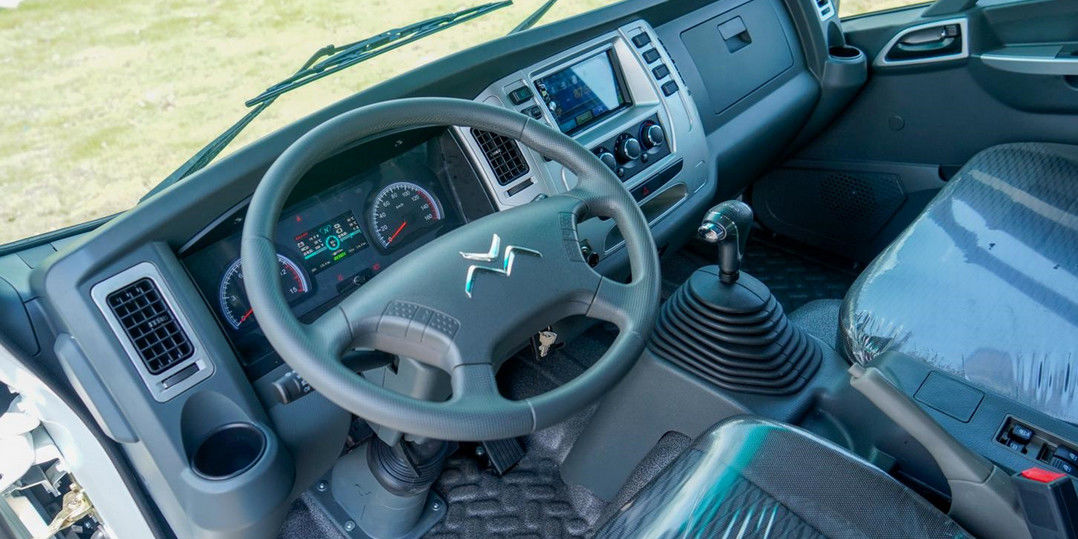

In terms of interior, the interior space of the car is very wide, with both horizontal and vertical dimensions. While ensuring a spacious cab, the rich storage space can also meet the daily storage needs of drivers and passengers.
310km range/fast charging for only 2 hours
The maximum efficiency can reach 96%, and the maximum power can reach 130kW. Rated/peak torque: 140/320Nm. The NEDC has a range of 310km and offers both fast and slow charging modes.





18m3 Electric Cargo Van Pure 310km Fast & Slow Charging Transportation Truck 0



18m3 Electric Cargo Van Pure 310km Fast & Slow Charging Transportation Truck 1



18m3 Electric Cargo Van Pure 310km Fast & Slow Charging Transportation Truck 2
