Place of Origin:
China
Brand Name:
Kunming passenger car
Model Number:
Classic

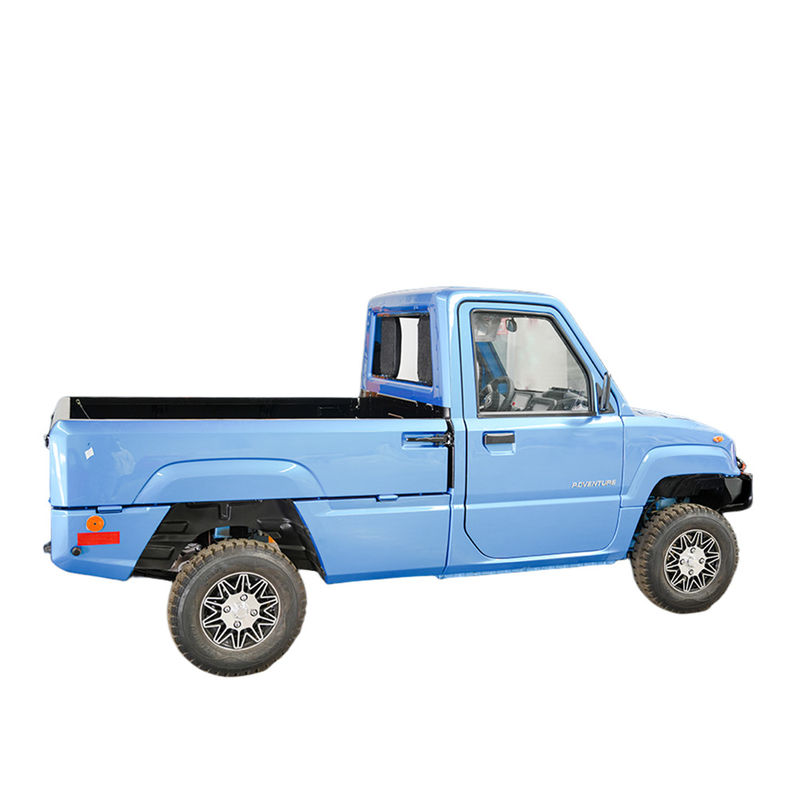

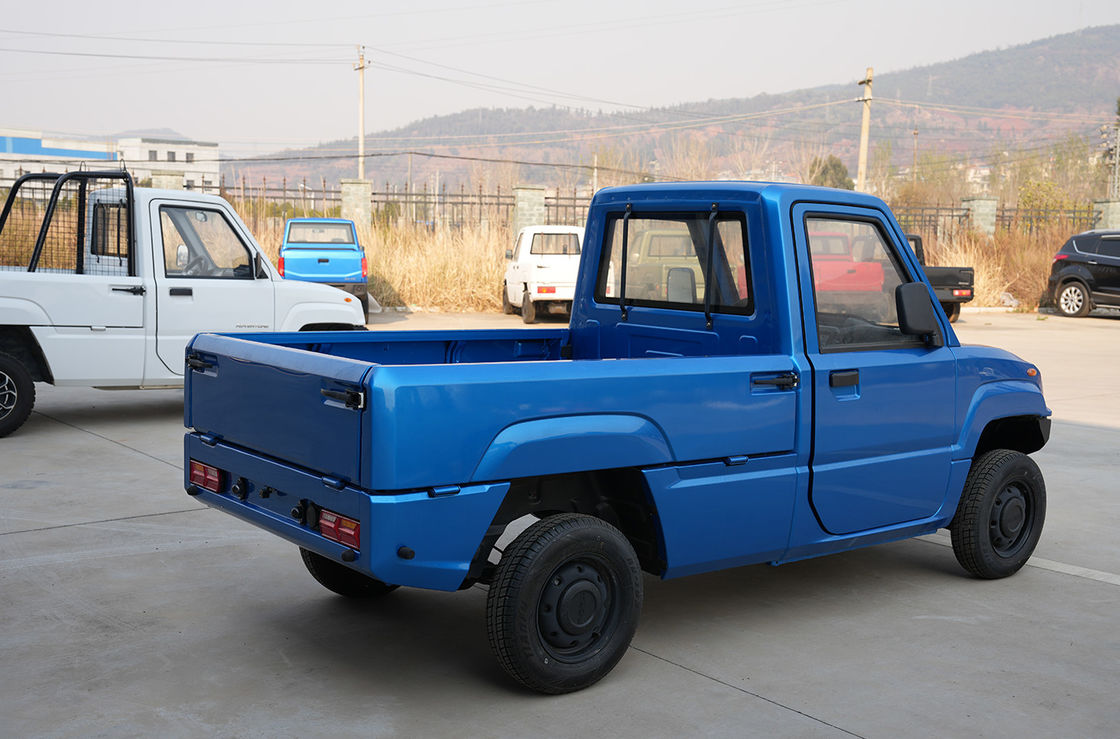

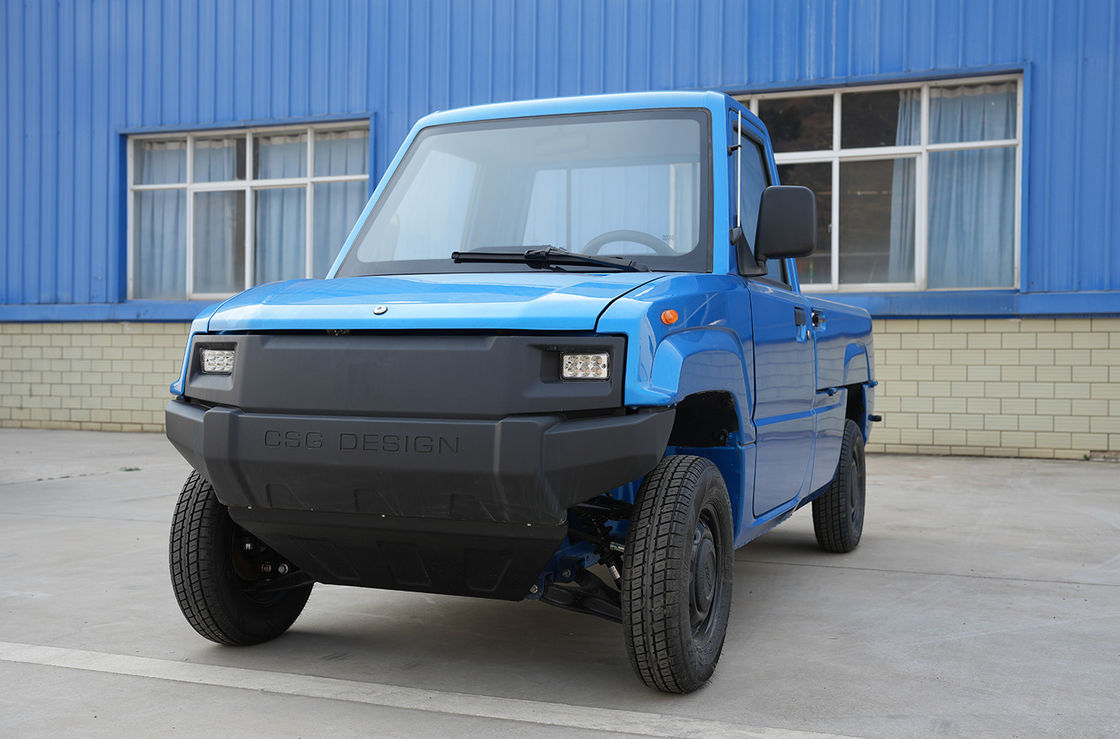

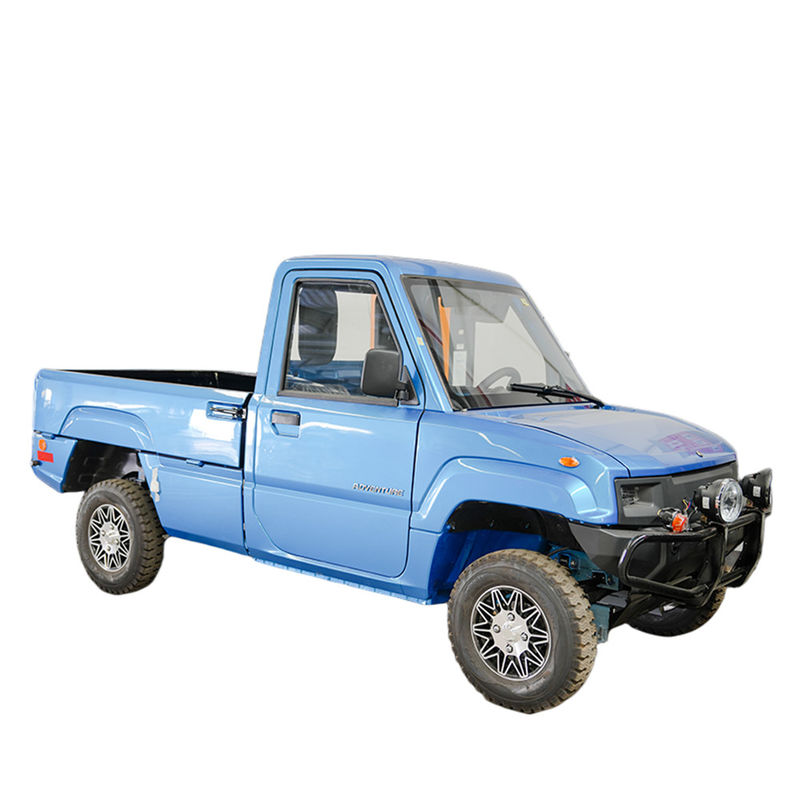

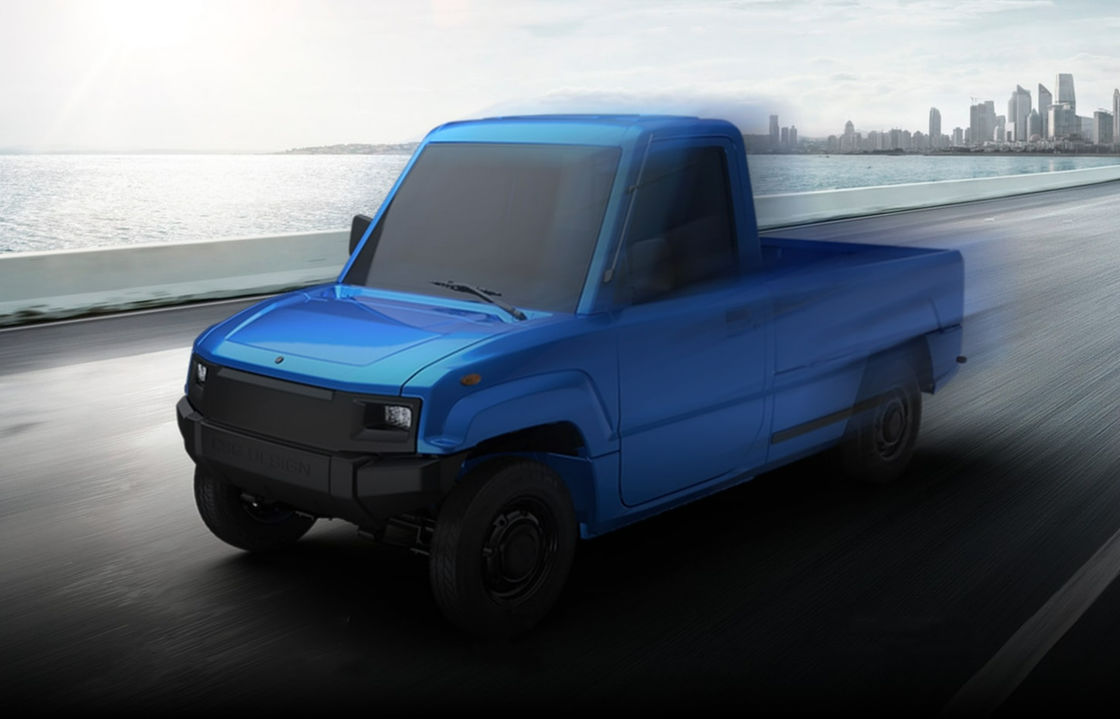

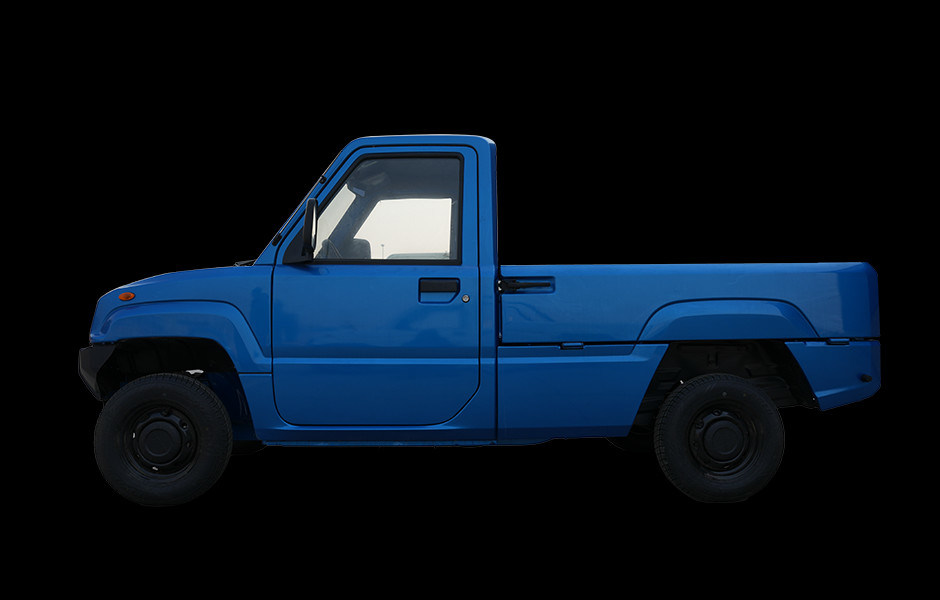

Low Speed EV Pickup Trucks Electric Car Mini Pickup Trucks Adult EV Pure Battery Range Truck
Specifications:
No. | Model name | Classic | Classic |
1 | Model ID | YNKY1131D4 | YNKY1131D5 |
2 | Vehicle status | 72V 4KW | 72V 5KW |
3 | Right hand drive | ○ | ○ |
4 | Length × Width × Height (mm) | 3475×1375×1550 | 3475×1375×1550 |
5 | Container internal dimensions | 1620X1245X300 | 1620X1245X300 |
6 | Wheelbase (mm) | 2315 | 2315 |
7 | Front track (mm) | 1195 | 1195 |
8 | Rear track (mm) | 1185 | 1185 |
9 | Front suspension (mm) | 455 | 455 |
10 | Rear suspention (mm) | 705 | 705 |
11 | Curb weight (kg) | 710 | 710 |
12 | Load quality (kg) | 500 | 500 |
13 | Seats No. | 2 | 2 |
14 | Gross weight (kg) | 1340 | 1340 |
15 | Performance parameters | ||
16 | Max speed (km/h) | 40 | 40 |
17 | Acceleration time s (0-40km) | 15 | 15 |
18 | Max grade | 0.25 | 0.25 |
19 | Min turning diameter (m) | ≤9 | ≤9 |
20 | Maximum angle | 36.3(outer wheel)/42(inner wheel) | 36.3(outer wheel)/42(inner wheel) |
21 | Approach angle (°) | ≥55 | ≥55 |
22 | Departure angle (°) | ≥35 | ≥35 |
23 | Bauchfreiheit (mm, no load) | ≥150 | ≥150 |
24 | Body structure | ||
25 | Cab | Integral sheet metal | Integral sheet metal |
26 | Tube doors | - | - |
27 | Cargo box (bed) | Triple folding gate | Triple folding gate |
28 | Battery/motor parameters | ||
29 | Battery type | Maintenance-free lead-acid batteries |
Maintenance-free lead-acid batteries |
. | Battery specification(V/Ah) | 72V ,100Ah | 72V ,100Ah |
31 | Battery optional | ○ 105Ah LFP ○ 240Ah LFP |
○ 105Ah LFP ○ 240Ah LFP |
32 | Lithium electric heating plate | ○ | ○ |
33 | Driving mileage (no load) (km) | ≥120 | ≥120 |
34 | 220V charging plug | ● | ● |
35 | 110~220V charging plug (wide voltage) | ○ | ○ |
36 | Charging time (20%-100%) (h) | 8~10 | 8~10 |
37 | Motor type | AC asynchronous motor | AC asynchronous motor |
38 | Rated power (kW) | 4KW | 5KW |
39 | Chassis/Wheel Braking | ||
40 | Drive form | RWD | RWD |
"-" indicates that this configuration is not available. "○" represents optional items, which need to be selected and explained; ● Indicates the standard configuration item. |
Colors:
and
and
2. Equipment: A series of advanced production equipment, including stamping equipment, welding equipment, spraying equipment, assembly equipment, etc.
