Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM01
2-Seat Lithium Battery Electric Cargo Van 220km Range 90Km/h High Speed Minivan Electric Van Minivan
HM01 New Energy Vehicle Minivan FOB SHANGHAI INCLUDING BATTERY
New Energy Vehicle Description
1. HM01 is a 4.8m new energy electric medium-sized van, which is divided into three models according to the battery power: 41.93 kwh, 41.6 kwh and 49.92 kwh.
2. The vehicle body is 4.865m long, the rated load is 1.43t, and the cargo box volume is more than 5.4m3.

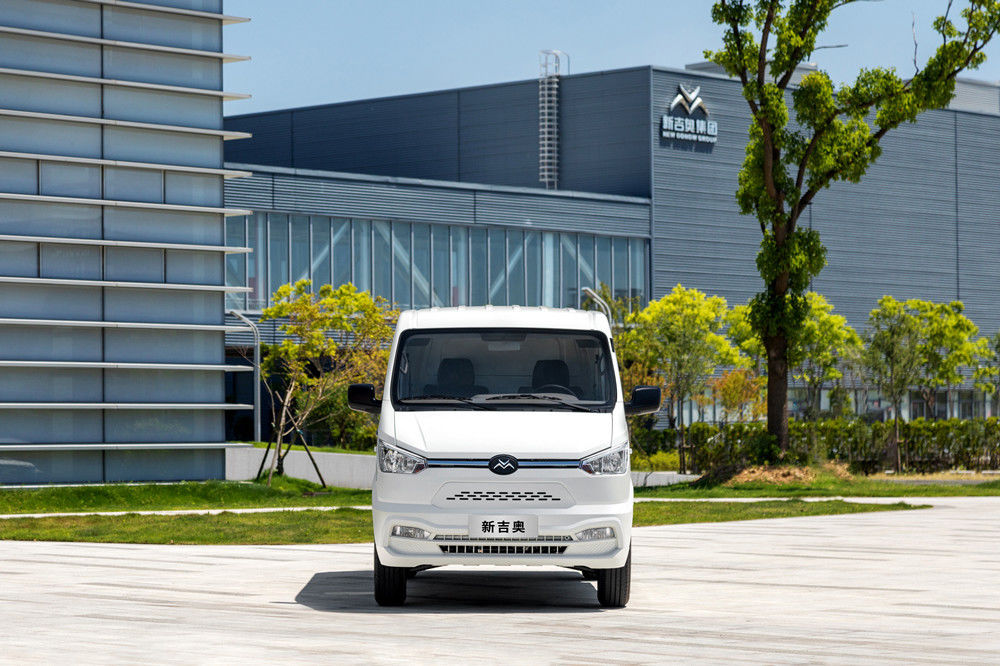

3. The whole vehicle design is integrated with sci-fi elements, and the family headlights are continued. The grille is connected with the headlights with European hardy design to increase the metal texture;
4. The trapezoidal shape design of the lower grille improves the overall tension of the car head, making the whole front face look layered and dynamic; The LOGO of the whole vehicle adopts the drop molding effect to improve the quality of the whole vehicle.
|
Models |
Tianjin Lishen version |
Gotion version |
||
|
Basic parameters |
Overall dimensions(mm) |
4865×1715×2060 |
4865×1715×2060 |
|
|
Curb weight (kg) |
1620 |
1590 |
||
|
Total mass (kg) |
3150 |
3150 |
||
|
Load capacity (including people) (kg) |
1530 |
1530 |
||
|
Seats |
2 |
2 |
||
|
1km maximum speed (km/h) |
95 |
95 |
||
|
30min maximum stable speed (km/h) |
90 |
90 |
||
|
Maximum gradient |
20% |
20% |
||
|
Range (NEDC) (km) (HICONICS motor) |
≥260 |
≥220 |
||
|
Cargo box volume (m3) |
≥5.4 |
≥5.4 |
||
|
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
|
Battery brand |
Tianjin Lishen |
Hengtian Gotion |
||
|
Total battery energy (kWh) |
41.6 |
41.93 |
||
|
Battery density (Wh/kg) |
≥135 |
≥135 |
||
|
Battery cooling mode |
Natural cooling |
Natural cooling |
||
|
Electric heating |
● |
● |
||
|
Drive motor |
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
|
|
Motor rated/peak power (kW) |
30/60 |
30/60/70 |
||
|
Peak torque (N.m) |
225/220 |
220/230 |
||
|
Motor cooling mode |
Liquid cooling |
Liquid cooling |
||
|
Charging mode |
Quick charge |
● |
● |
|
|
Slow charge |
● |
● |
||
|
Slow charging gun |
○ |
○ |
||
|
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h normal temperature (20%~100%) |
||
|
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
|
|
Steering system |
Power steering |
EPS |
EPS |
|
|
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
|
|
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
||
|
Braking system |
Front brake type |
Disc |
Disc |
|
|
Rear brake type |
Drum |
Drum |
||
|
Braking mode |
Hydraulic brake |
Hydraulic brake |
||
|
Parking brake type |
Handbrake |
Handbrake |
||
|
Shift form |
Gear lever |
● |
— |
|
|
Electronic knob |
— |
● |
||
|
Tyre |
Tyre specifications |
|
|
|
|
Rim material |
Steel |
Steel |
||
|
Wheel hub cover (4 wheels) |
— |
— |
||
|
Number of Tyres |
4 |
4 |
||
|
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
||
Advanced technology applied on new energy vehicle
1. Stamping: No stamping process required
2. Welding: from the traditional welding process to the riveting joint process
3.Coating: aluminum body without electrophoresis, green and environment-friendly
Body detail
1.Body size(mm): 4865×1715×2060

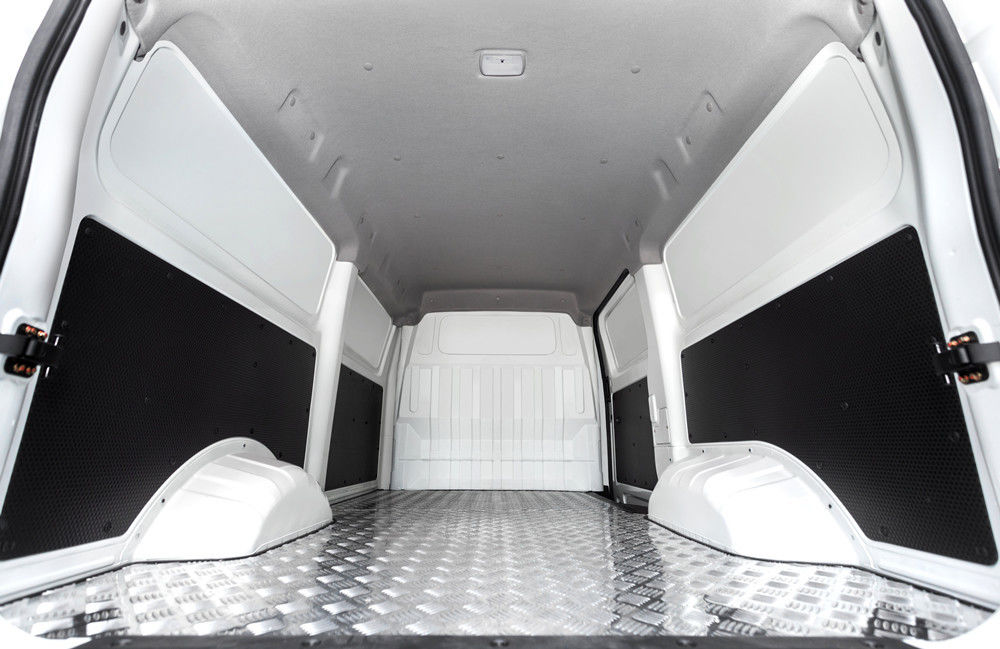

2.Cargo box (mm): 2650*1500*1350
3.Container volume: 5.4m³
4. Space: Superior NVH performance, superior to the requirements of similar models.
