Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM02-Flatbed truck

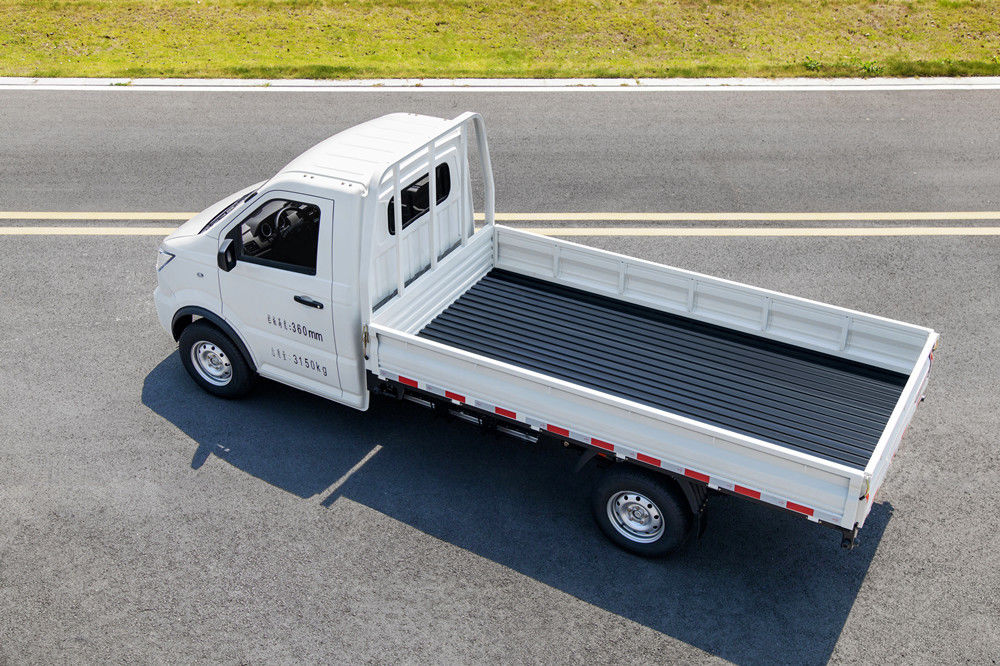

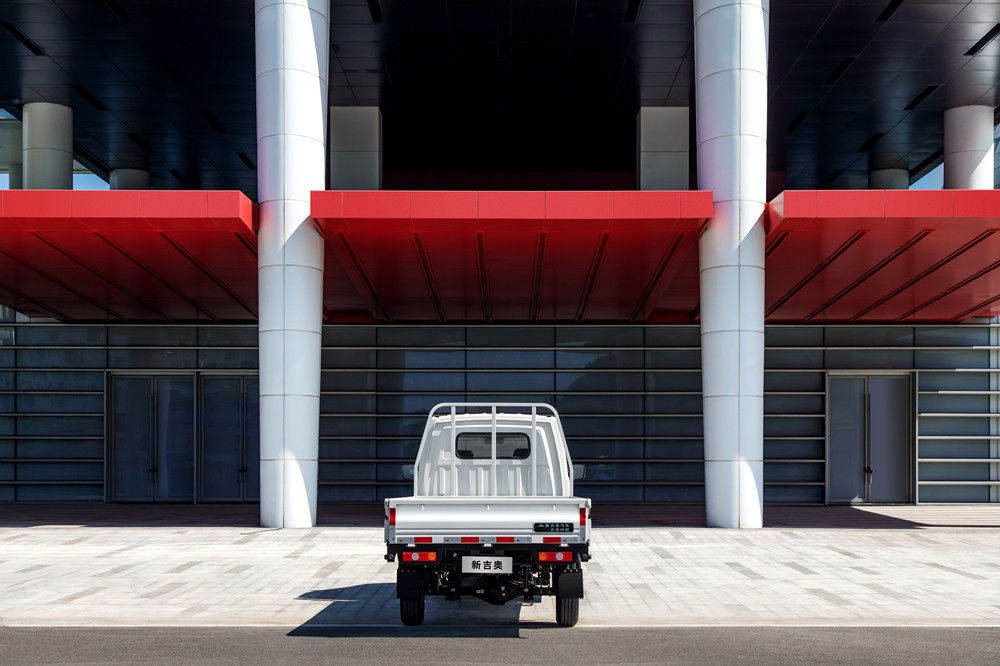

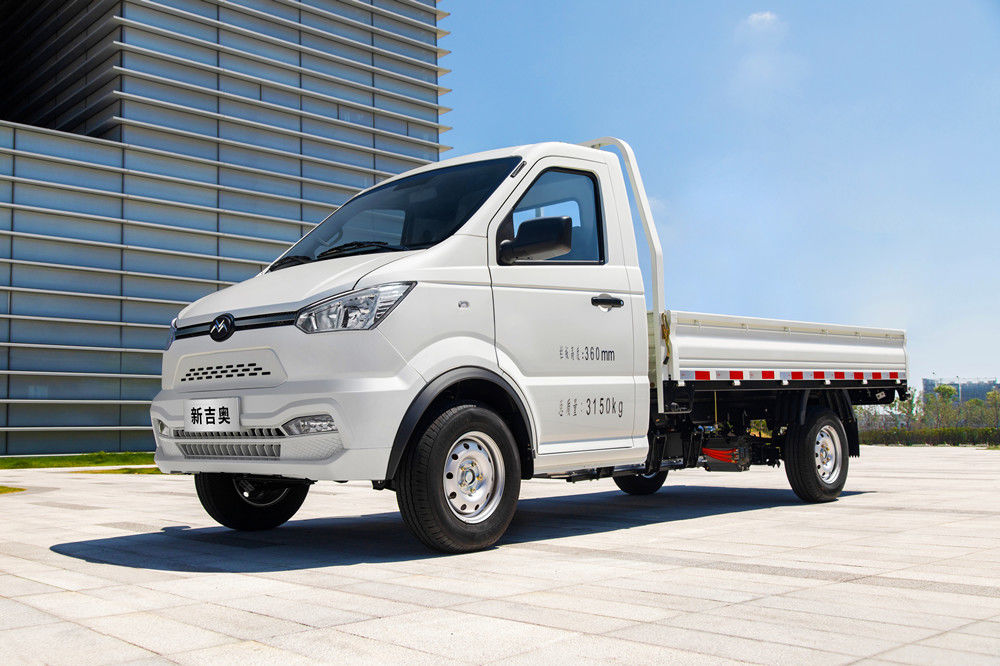

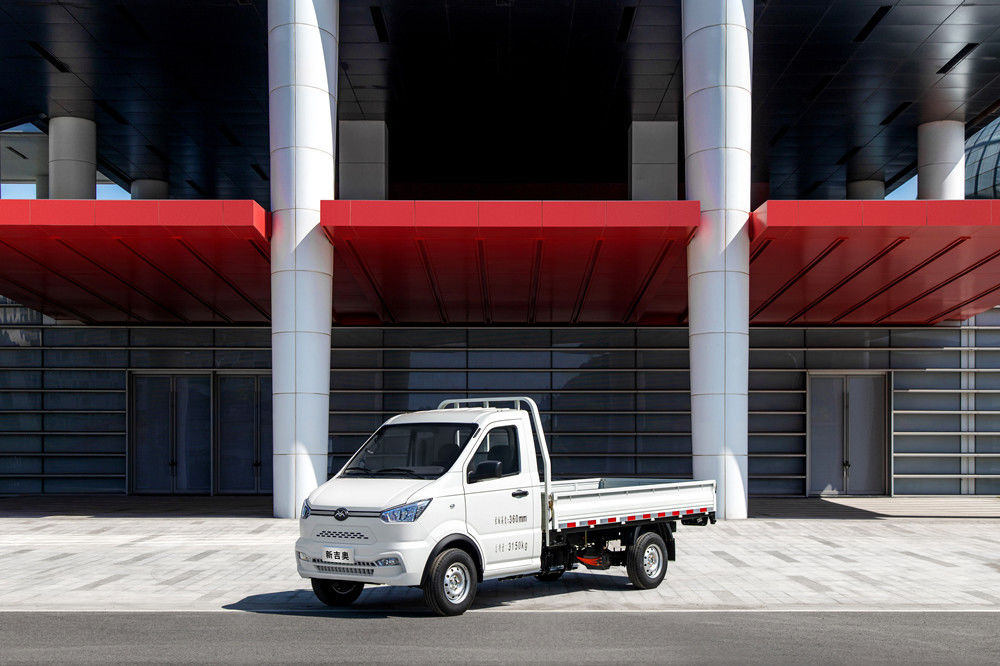

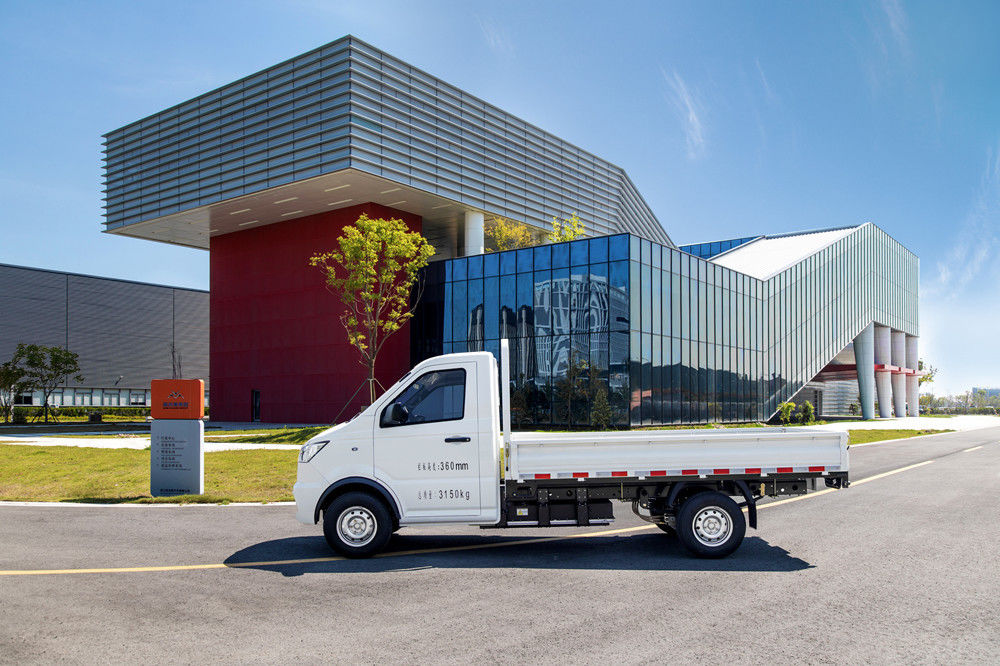

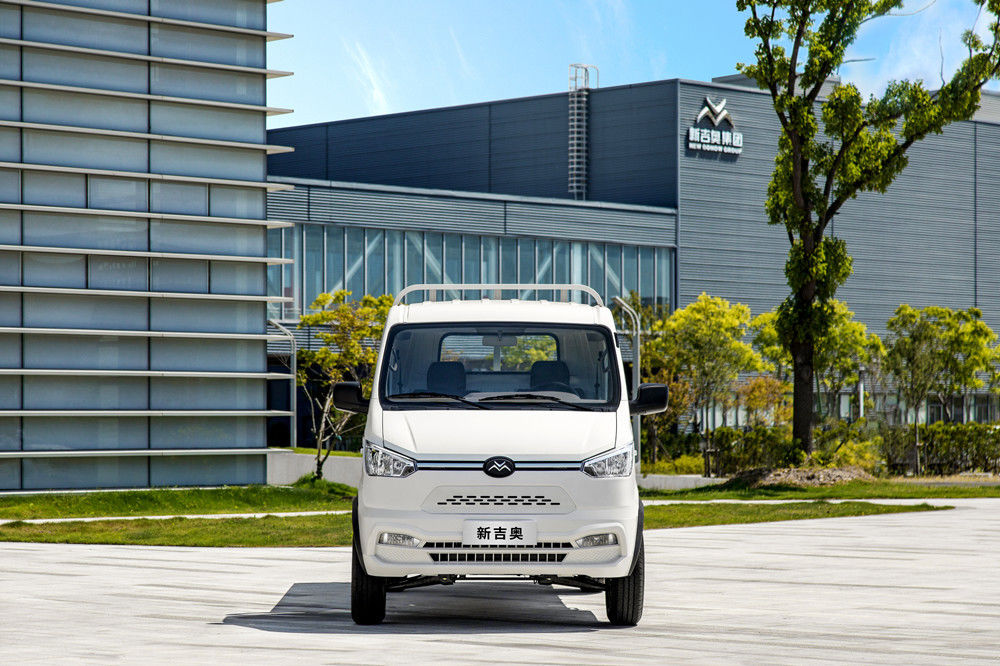

High Speed Delivery Van EV Pickup Truck New Energy Vehicle 300km Mini Truck Electric Minivan
HM02 New Energy Vehicle Minivan FOB SHANGHAI INCLUDING BATTERY
EV Pickup Truck Description
1. The exterior design of the vehicle adopts a simple, clean and neat style;
2. The air intake grille adopts honeycomb design to increase the air intake area, which is conducive to heat dissipation, reduces
the wind resistance and reflects the sense of hierarchy;
3. After the logo of the slow charging port is hidden, there are many highlights
4. The tail lamp design is simple and generous;
5. The instrument panel is simple and generous, and there are many convenient storage spaces. The seat design conforms to the human body curve, with strong wrapping and better driving feeling.
|
Items EV Pickup Truck |
Flatbed truck |
Cargo Box |
Chassis Truck |
|||||
|
Basic parameters |
Overall dimensions(mm) |
5460×1770×2130 |
5415×1770×2590 |
5445×1770×2605 |
||||
|
Container size(mm) |
3180×1680×360 |
3150×1680×1720 |
3180×1680×360 |
|||||
|
Wheel base(mm) |
3400 |
3400 |
3400 |
|||||
|
Curb weight (kg) |
1600 |
1730 |
1620, 1660 |
|||||
|
Total mass (kg) |
3150 |
3150 |
3150 |
|||||
|
Rated load mass (kg) |
1420 |
1290 |
1400,1360 |
|||||
|
Seats |
2 |
2 |
2 |
|||||
|
1km maximum speed (km/h) |
95 |
95 |
95 |
|||||
|
30min maximum stable speed (km/h) |
90 |
90 |
90 |
|||||
|
Maximum gradient |
20% |
20% |
20% |
|||||
|
Endurance mileage (under Chinese conditions) (km) |
≥190 |
≥190 |
≥190 |
|||||
|
Cargo box volume (m3) |
/ |
≥9m³ |
≥9m³ |
|||||
|
|
Container material |
Steel |
Steel |
Steel |
||||
|
|
Body type |
Non integral body |
Non integral body |
Non integral body |
||||
|
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
Lithium iron phosphate |
|||
|
Battery brand |
Hengtian |
Hengtian |
Hengtian |
|||||
|
Total battery energy (kWh) |
41.93 |
41.93 |
41.93 |
|||||
|
Battery density (Wh/kg) |
≥135 |
≥135 |
≥135 |
|||||
|
Battery cooling mode |
Natural cooling |
Natural cooling |
Natural cooling |
|||||
|
Electric heating |
● |
● |
● |
|||||
|
Drive motor |
Motor brand |
Oswell |
LINCONTROL |
Oswell |
LINCONTROL |
Oswell |
LINCONTROL |
|
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||||
|
Motor rated/peak power (kW) |
30/60 |
35/70 |
30/60 |
35/70 |
30/60 |
35/70 |
||
|
Peak torque (N.m) |
220 |
230 |
220 |
230 |
220 |
230 |
||
|
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||||
|
VCU |
VCU brand |
HICONICS |
LINCONTROL |
HICONICS |
LINCONTROL |
HICONICS |
LINCONTROL |
|
|
Charging mode |
Quick charge |
● |
● |
● |
||||
|
Slow charge |
● |
● |
● |
|||||
|
Slow charging gun |
○ |
○ |
○ |
|||||
|
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h |
|||||
|
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
Rear-Wheel Drive |
||||
|
Steering system |
Power steering |
EPS |
EPS |
EPS |
||||
|
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
McPherson independent suspension |
||||
|
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
|||||
|
Braking system |
Front brake type |
Disc |
Disc |
Disc |
||||
|
Rear brake type |
Drum |
Drum |
Drum |
|||||
|
Braking mode |
Hydraulic brake |
Hydraulic brake |
Hydraulic brake |
|||||
|
Parking brake type |
Handbrake |
Handbrake |
Handbrake |
|||||
|
Shift form |
Gear lever |
— |
— |
— |
||||
|
Electronic knob |
● |
● |
● |
|||||
|
Tyre |
Tyre specifications |
195R14C 8PR |
195R14C 8PR |
195R14C 8PR |
||||
|
Rim material |
Steel |
Steel |
Steel |
|||||
|
Wheel hub cover (4 wheels) |
— |
— |
— |
|||||
|
Number of Tyres |
4 |
4 |
4 |
|||||
|
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
|||||
|
Door configuration |
Door |
Number of doors |
2 |
2 |
2 |
|||
|
Cargo box |
Side door |
/ |
Right single opening, Optional Double opening |
/ |
||||
|
tailgate |
Single opening from top to bottom |
Door to door |
Door to door |
|||||
|
Security Configuration |
Safety air bag |
Driver/co driver |
—/— |
—/— |
—/— |
|||
|
Seat belt (driver) |
Ordinary three-point safety belt |
● |
● |
● |
||||
|
Adjustable seat belt height |
— |
— |
— |
|||||
|
Prompt for unfastened seat belt |
● |
● |
● |
|||||
|
Seat belt (co driver) |
Ordinary three-point safety belt |
● |
● |
● |
||||
|
Adjustable seat belt height |
— |
— |
— |
|||||
|
Prompt for unfastened seat belt |
— |
— |
— |
|||||
|
Security Configuration |
Central locking |
Central locking in the vehicle |
● |
● |
● |
|||
|
Automatic locking of driving |
— |
— |
— |
|||||
|
Radar/image |
Front parking radar |
— |
— |
— |
||||
|
Rear reversing radar |
○ |
○ |
○ |
|||||
|
Reversing video image |
— |
— |
— |
|||||
|
Blind area monitoring |
— |
— |
— |
|||||
|
Key |
Mechanical key |
● |
● |
● |
||||
|
remote key |
● |
● |
● |
|||||
|
Departure reminder |
● |
● |
● |
|||||
|
Door open reminder |
● |
● |
● |
|||||
|
Low speed alarm |
● |
● |
● |
|||||
|
Remote monitoring |
● |
● |
● |
|||||
|
ABS |
● |
● |
● |
|||||
|
Brake force distribution |
● |
● |
● |
|||||
|
Shroud |
— |
○ |
— |
|||||
|
Tire pressure monitoring device |
— |
— |
— |
|||||
|
Tips for fatigue driving |
— |
— |
— |
|||||
|
Lane departure warning system |
— |
— |
— |
|||||
|
External configuration |
Front bumper (body color, without bright strip) |
● |
● |
● |
||||
|
Front grille |
● |
● |
● |
|||||
|
Front door outside pull handle |
Black |
Black |
Black |
|||||
|
Front door inner pull handle |
Black |
Black |
Black |
|||||
|
Rear license plate lamp trim panel |
— |
— |
— |
|||||
|
Fender |
Front wheel fender |
● |
● |
● |
||||
|
Rear wheel fender |
● |
● |
● |
|||||
|
Reflective sticker |
● |
● |
● |
|||||
|
Engine hood insulation pad |
— |
— |
— |
|||||
Advanced technology applied on new energy vehicle
1. The exterior design of the vehicle adopts a simple, clean and neat style
2. The slow charging port is hidden behind the logo, full of highlights
3. The tail lamp design is simple and generous
Body detail
1.Body size(mm): 5460*1770*2130
2.Cargo box (mm): 3180*1680*360
3.Container volume: 1.9(fence)-9.2(cargo box)m ³
