Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM01

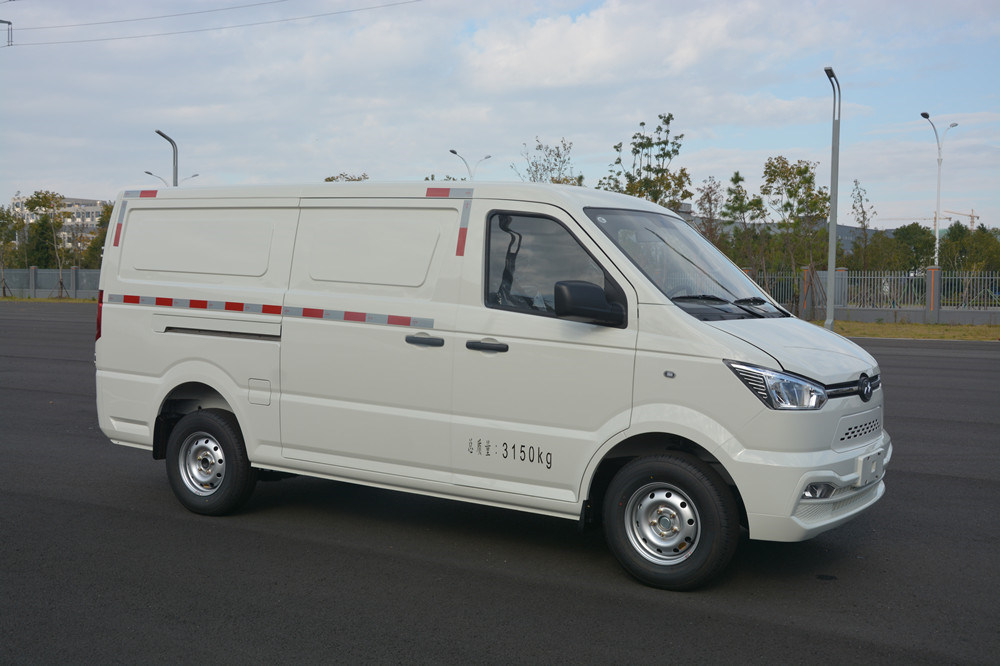

New Energy Vehicle Electric Minivans Long Mileage Pure Electric Delivery Van Large Space
Product Configuration
|
Models |
Tianjin Lishen version |
Gotion version |
||||
|
Model No. |
NGA5030XXYBEV2 |
NGA5030XXYBEV3 |
||||
|
Basic parameters |
Overall dimensions(mm) |
4865×1715×2060 |
4865×1715×2060 |
|||
|
Curb weight (kg) |
1620 |
1590 |
||||
|
Total mass (kg) |
3150 |
3150 |
||||
|
Load capacity (including people) (kg) |
1530 |
1560 |
||||
|
Seats |
2 |
2 |
||||
|
1km maximum speed (km/h) |
95 |
95 |
||||
|
30min maximum stable speed (km/h) |
90 |
90 |
||||
|
Maximum gradient |
20% |
20% |
||||
|
Range (NEDC) (km) (HICONICS motor) |
≥260 |
≥220 |
||||
|
Cargo box volume (m3) |
≥5.4 |
≥5.4 |
||||
|
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
||
|
Battery brand |
Tianjin Lishen |
Hengtian Gotion |
||||
|
Total battery energy (kWh) |
41.6 |
41.93 |
||||
|
Battery density (Wh/kg) |
≥135 |
≥135 |
||||
|
Battery cooling mode |
Natural cooling |
Natural cooling |
||||
|
Electric heating |
● |
● |
||||
|
Drive motor |
Motor brand |
HICONICS○ |
Oswell● |
Oswell● |
LINCONTROL○ |
|
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||
|
Motor rated/peak power (kW) |
30/60 |
30/60 |
30/60 |
30/70 |
||
|
Peak torque (N.m) |
225 |
220 |
220 |
230 |
||
|
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||
|
Charging mode |
Quick charge |
● |
● |
|||
|
Slow charge |
● |
● |
||||
|
Slow charging gun |
○ |
○ |
||||
|
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h normal temperature (20%~100%) |
||||
|
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
|||
|
Steering system |
Power steering |
EPS |
EPS |
|||
|
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
|||
|
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
||||
|
Braking system |
Front brake type |
Disc |
Disc |
|||
|
Rear brake type |
Drum |
Drum |
||||
|
Braking mode |
Hydraulic brake |
Hydraulic brake |
||||
|
Parking brake type |
Handbrake |
Handbrake |
||||
|
Shift form |
Gear lever |
● |
— |
|||
|
Electronic knob |
— |
● |
||||
|
Tyre |
Tyre specifications |
195R14C 8PR |
195R14C 8PR |
|||
|
Rim material |
Steel |
Steel |
||||
|
Wheel hub cover (4 wheels) |
— |
— |
||||
|
Number of Tyres |
4 |
4 |
||||
|
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
||||
|
Door configuration |
Door |
Number of doors |
4 |
4 |
||
|
Side door form |
Manual side sliding door |
Manual side sliding door |
||||
|
Tailgate form |
Door to door |
Door to door |
||||
Both driving sense and loading capacity
Product highlights - structure and loading capacity
The key parts of the car body are made of high-strength steel, and a new cage type safety framework is cast. The annular structures support each other, with strong rigidity, s table s tructure, and strong bearing capacity.
High bearing capacity
It has the characteristics of lightweight, flexible handling, stronger support, and strong carrying capacity, with a load capacity of 1560kg and a load utilization coefficient of 0.98, far exceeding similar models in the market; The electric power steering is more portable, and it is easy to turn with full load.
Tailgate split door
The opening width of the side sliding door and the opening angle of the tail gate conforms to ergonomics to the maximum extent, and the design of the tailgate split door is conducive to cargo handling; Aluminum alloy hinge has high strength and durability.
High quality EIC system
UDS diagnostic function can take safe faulthandling measures in time; The remote locking function can realize the remote control of the vehicle and has the anti-theft function; The high-voltage accessory system adopts the three in one physical integration scheme, which improves the reliability of the vehicle high-voltage management and distribution system. The power can be charged to 80% within 1.5h of fast charging.
