Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM01
Electric New Car Electric Cargo Van City Express Van Mini Cargo Van Express/transporting Van
Product Configuration
|
Models |
Tianjin Lishen version |
Gotion version |
||||
|
Model No. |
NGA5030XXYBEV2 |
NGA5030XXYBEV3 |
||||
|
Basic parameters |
Overall dimensions(mm) |
4865×1715×2060 |
4865×1715×2060 |
|||
|
Curb weight (kg) |
1620 |
1590 |
||||
|
Total mass (kg) |
3150 |
3150 |
||||
|
Load capacity (including people) (kg) |
1530 |
1560 |
||||
|
Seats |
2 |
2 |
||||
|
1km maximum speed (km/h) |
95 |
95 |
||||
|
30min maximum stable speed (km/h) |
90 |
90 |
||||
|
Maximum gradient |
20% |
20% |
||||
|
Range (NEDC) (km) (HICONICS motor) |
≥260 |
≥220 |
||||
|
Cargo box volume (m3) |
≥5.4 |
≥5.4 |
||||
|
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
||
|
Battery brand |
Tianjin Lishen |
Hengtian Gotion |
||||
|
Total battery energy (kWh) |
41.6 |
41.93 |
||||
|
Battery density (Wh/kg) |
≥135 |
≥135 |
||||
|
Battery cooling mode |
Natural cooling |
Natural cooling |
||||
|
Electric heating |
● |
● |
||||
|
Drive motor |
Motor brand |
HICONICS○ |
Oswell● |
Oswell● |
LINCONTROL○ |
|
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||
|
Motor rated/peak power (kW) |
30/60 |
30/60 |
30/60 |
30/70 |
||
|
Peak torque (N.m) |
225 |
220 |
220 |
230 |
||
|
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||
|
Charging mode |
Quick charge |
● |
● |
|||
|
Slow charge |
● |
● |
||||
|
Slow charging gun |
○ |
○ |
||||
|
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h normal temperature (20%~100%) |
||||
|
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
|||
|
Steering system |
Power steering |
EPS |
EPS |
|||
|
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
|||
|
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
||||
|
Braking system |
Front brake type |
Disc |
Disc |
|||
|
Rear brake type |
Drum |
Drum |
||||
|
Braking mode |
Hydraulic brake |
Hydraulic brake |
||||
|
Parking brake type |
Handbrake |
Handbrake |
||||
|
Shift form |
Gear lever |
● |
— |
|||
|
Electronic knob |
— |
● |
||||
|
Tyre |
Tyre specifications |
195R14C 8PR |
195R14C 8PR |
|||
|
Rim material |
Steel |
Steel |
||||
|
Wheel hub cover (4 wheels) |
— |
— |
||||
|
Number of Tyres |
4 |
4 |
||||
|
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
||||
|
Door configuration |
Door |
Number of doors |
4 |
4 |
||
|
Side door form |
Manual side sliding door |
Manual side sliding door |
||||
|
Tailgate form |
Door to door |
Door to door |
||||

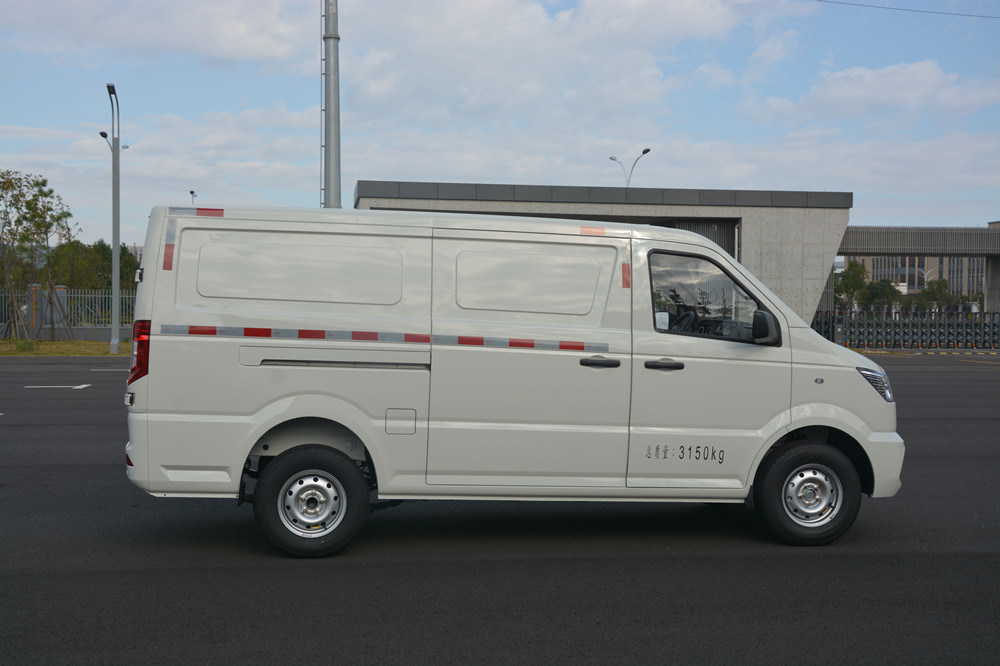

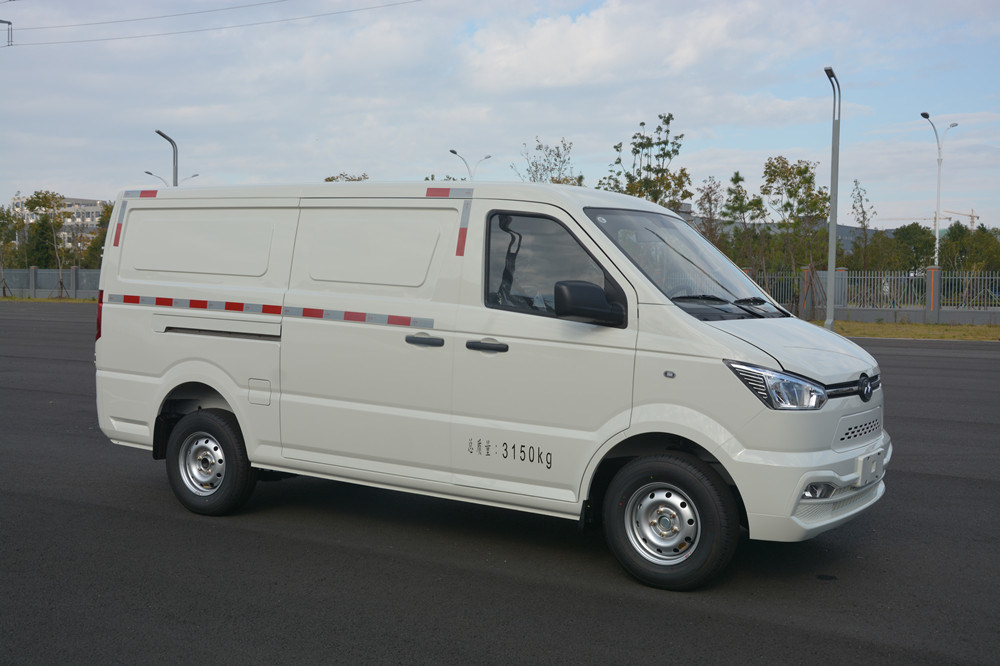

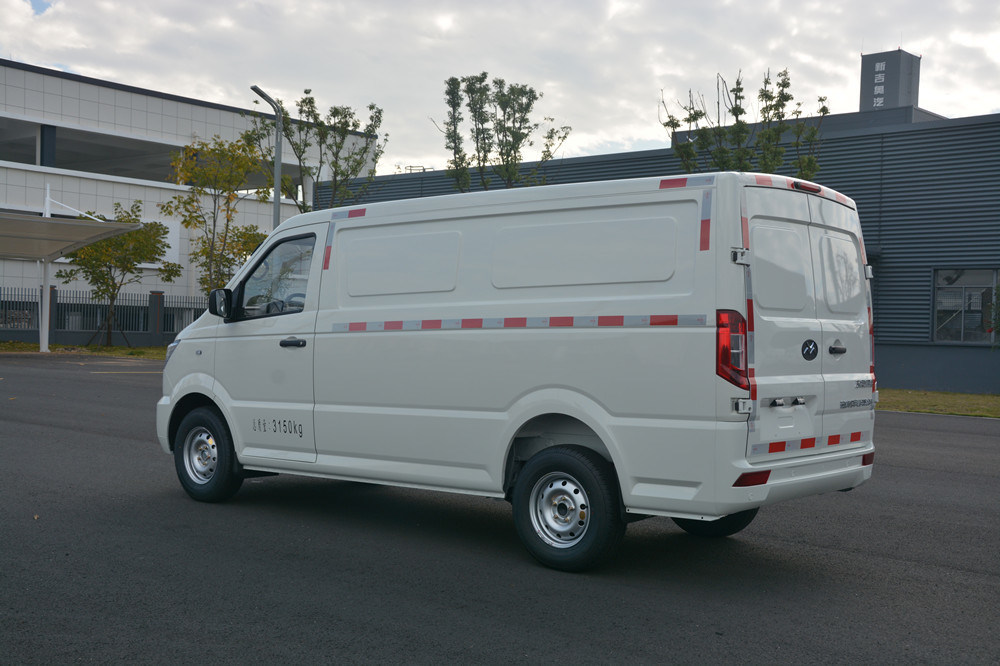

Electric Cargo Van Model introduction
HM01, a 4.8m new energy electric middle plane developed by our company, is divided into three models according to the battery power: Gotion version (41.93degrees), Lishen standard endurance version (41.6 degrees) and Lishen high endurance version (49.92 degrees). The vehicle body is 4.865m long, the rated load is 1.43t, and the cargo box volume is more than 5.4m3.

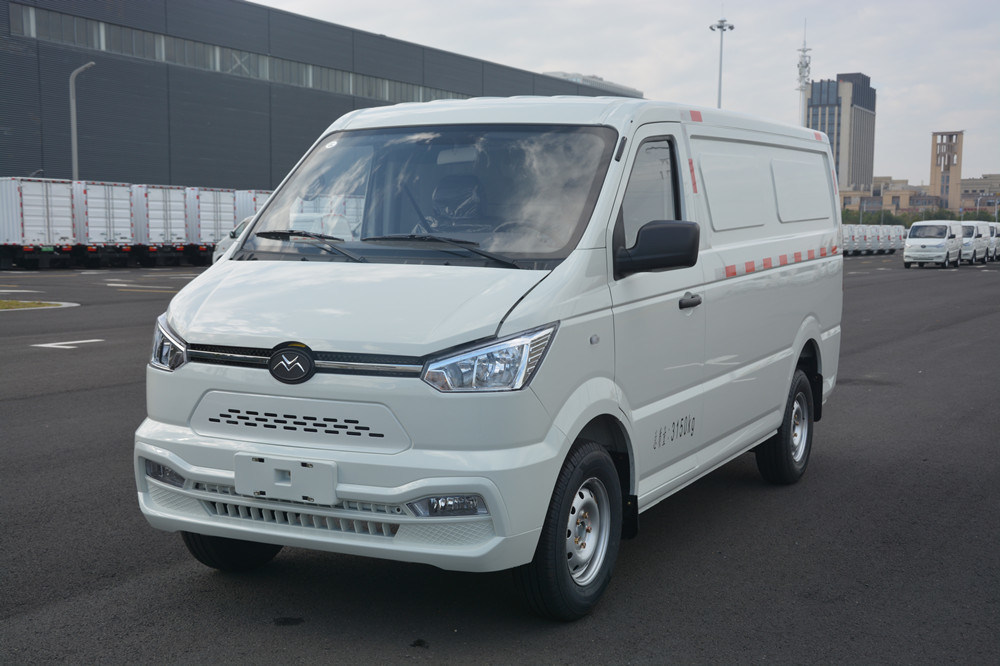

The whole vehicle design is integrated with sci-fi elements, and the family headlights are continued. The grille is connected with the headlights with European hardy design to increase the metal texture; The trapezoidal shape design of the lower grille improves the overall tension of the car head, making the whole front face look layered and dynamic; The LOGO of the whole vehicle adopts the drop molding effect to improve the quality of the whole vehicle.

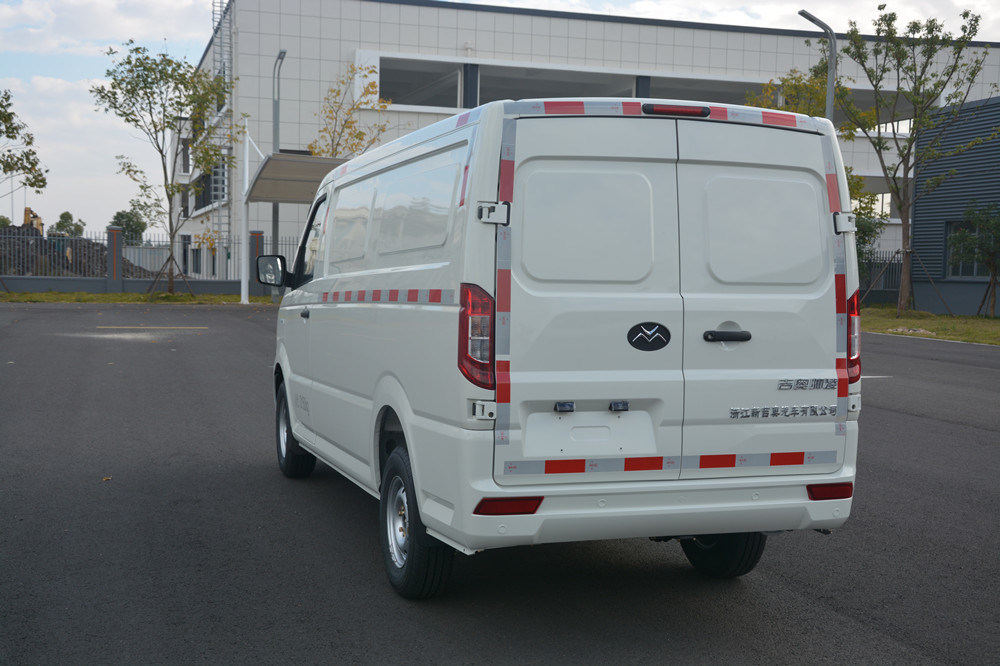

Tailgate split door
The opening width of the side sliding door and the opening angle of the tail gate conforms to ergonomics to the maximum extent, and the design of the tailgate split door is conducive to cargo handling; Aluminum alloy hinge has high strength and durability.
High quality EIC system
UDS diagnostic function can take safe faulthandling measures in time; The remote locking function can realize the remote control of the vehicle and has the anti-theft function; The high-voltage accessory system adopts the three in one physical integration scheme, which improves the reliability of the vehicle high-voltage management and distribution system. The power can be charged to 80% within 1.5h of fast charging.
