Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM02-Cargo Box

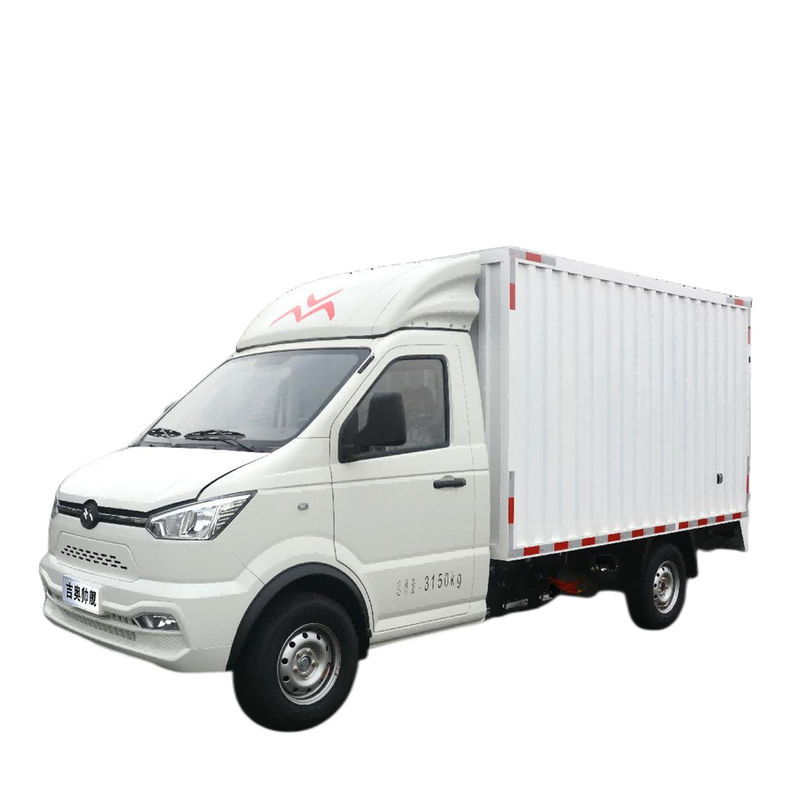

Electric Mini Van Electric Cargo Van Cargo Pickup Truck Pure New Energy Pickup Car Cargo Van
Product Configuration
Items |
Flatbed truck |
Cargo Box |
Chassis Truck |
|||||
Basic parameters |

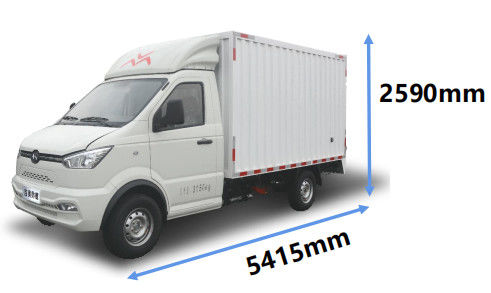

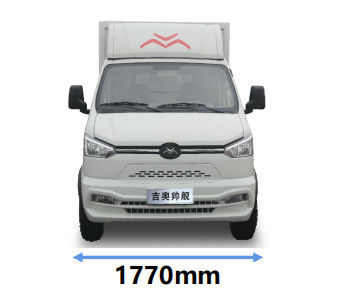

Overall dimensions(mm) |
5460×1770×2130 |
5415×1770×2590 |
5445×1770×2605 |
||||

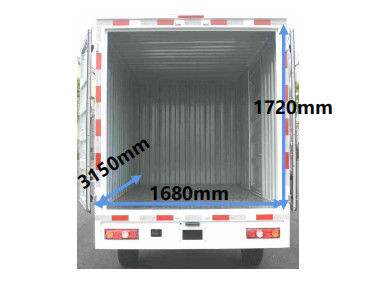

Container size(mm) |
3180×1680×360 |
3150×1680×1720 |
3180×1680×360 |
|||||
Wheel base(mm) |
3400 |
3400 |
3400 |
|||||
Curb weight (kg) |
1600 |
1730 |
1620, 1660 |
|||||
Total mass (kg) |
3150 |
3150 |
3150 |
|||||
Rated load mass (kg) |
1420 |
1290 |
1400,1360 |
|||||
Seats |
2 |
2 |
2 |
|||||
1km maximum speed (km/h) |
95 |
95 |
95 |
|||||
30min maximum stable speed (km/h) |
90 |
90 |
90 |
|||||
Maximum gradient |
20% |
20% |
20% |
|||||
Endurance mileage (under Chinese conditions) (km) |
≥190 |
≥190 |
≥190 |
|||||
Cargo box volume (m3) |
/ |
≥9m³ |
≥9m³ |
|||||
|
Container material |
Steel |
Steel |
Steel |
||||
|
Body type |
Non integral body |
Non integral body |
Non integral body |
||||
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
Lithium iron phosphate |
|||
Battery brand |
Hengtian |
Hengtian |
Hengtian |
|||||
Total battery energy (kWh) |
41.93 |
41.93 |
41.93 |
|||||
Battery density (Wh/kg) |
≥135 |
≥135 |
≥135 |
|||||
Battery cooling mode |
Natural cooling |
Natural cooling |
Natural cooling |
|||||
Electric heating |
● |
● |
● |
|||||
Drive motor |
Motor brand |
Oswell |
LINCONTROL |
Oswell |
LINCONTROL |
Oswell |
LINCONTROL |
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||||
Motor rated/peak power (kW) |
30/60 |
35/70 |
30/60 |
35/70 |
30/60 |
35/70 |
||
Peak torque (N.m) |
220 |
230 |
220 |
230 |
220 |
230 |
||
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||||
VCU |
VCU brand |
HICONICS |
LINCONTROL |
HICONICS |
LINCONTROL |
HICONICS |
LINCONTROL |
|
Charging mode |
Quick charge |
● |
● |
● |
||||
Slow charge |
● |
● |
● |
|||||
Slow charging gun |
○ |
○ |
○ |
|||||
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h |
|||||
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
Rear-Wheel Drive |
||||
Steering system |
Power steering |
EPS |
EPS |
EPS |
||||
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
McPherson independent suspension |
||||
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
|||||
Braking system |
Front brake type |
Disc |
Disc |
Disc |
||||
Rear brake type |
Drum |
Drum |
Drum |
|||||
Braking mode |
Hydraulic brake |
Hydraulic brake |
Hydraulic brake |
|||||
Parking brake type |
Handbrake |
Handbrake |
Handbrake |
|||||
Shift form |
Gear lever |
— |
— |
— |
||||
Electronic knob |
● |
● |
● |
|||||
Tyre |
Tyre specifications |
195R14C 8PR |
195R14C 8PR |
195R14C 8PR |
||||
Rim material |
Steel |
Steel |
Steel |
|||||
Wheel hub cover (4 wheels) |
— |
— |
— |
|||||
Number of Tyres |
4 |
4 |
4 |
|||||
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
|||||
Door configuration |
Door |
Number of doors |
2 |
2 |
2 |
|||
Cargo box |
Side door |
/ |
Right single opening, Optional Double opening |
/ |
||||
tailgate |
Single opening from top to bottom |
Door to door |
Door to door |
Electric Cargo Van Both driving sense and loading capacity
Pure electric van transport vehicle
Cargo box volume: 9.1m³
Driving range: 190km
Pure electric breast board transport vehicle
Length of breast board: 3180mm
Driving range: 190km
High strength body
The key parts of the car body are made of high-strength steel, and a new cage type safety framework is cast. The annular structures support each other, with s trong rigidity, stable structure, and strong bearing capacity.
High bearing capacity
It has the characteristics of lightweight, flexible handling, stronger support, and strong carrying capacity, with a load capacity of 1560kg and a load utilization coefficient of 0.98, far exceeding similar models in the market; The electric power steering is more portable, and it is easy to turn with full load.
Calibration verification
The whole vehicle has passed the reliability test and performance test (high-speed road condition, enhanced road condition, variable speed condition, general road) on the test site to ensure the stability, reliability and safety of the model.
