Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM01

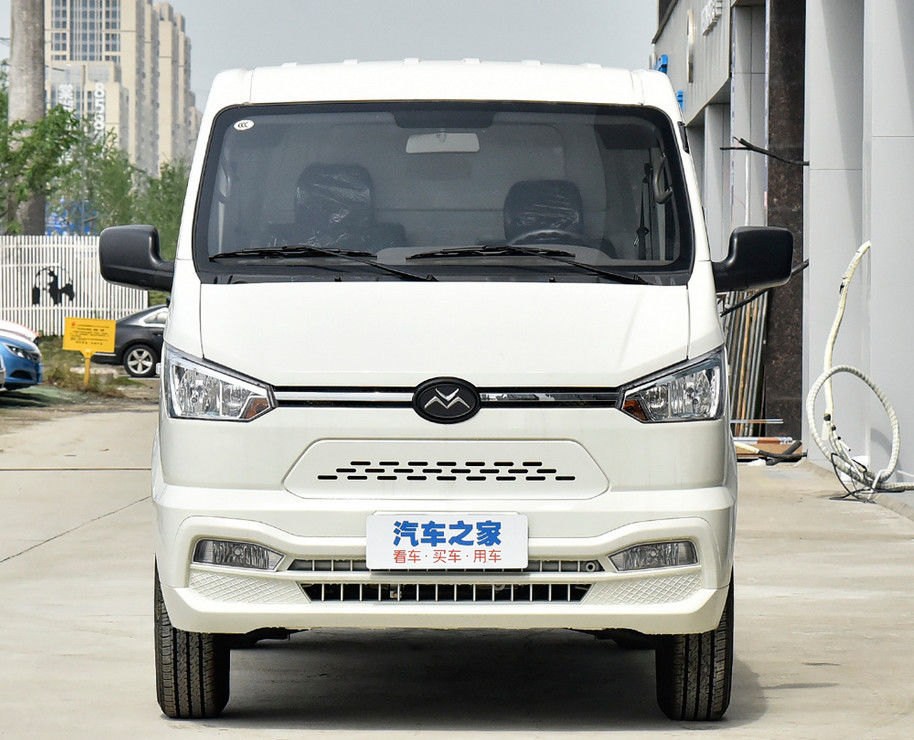

New Engergy Electric Cargo Van for Logistics Freight Vehicle Lithium iron Phosphate Battery
Data sheet:
Models |
Tianjin Lishen version |
Gotion version |
||||
Model No. |
NGA5030XXYBEV2 |
NGA5030XXYBEV3 |
||||
Basic parameters |
Overall dimensions(mm) |
4865×1715×2060 |
4865×1715×2060 |
|||
Curb weight (kg) |
1620 |
1590 |
||||
Total mass (kg) |
3150 |
3150 |
||||
Load capacity (including people) (kg) |
1530 |
1560 |
||||
Seats |
2 |
2 |
||||
1km maximum speed (km/h) |
95 |
95 |
||||
30min maximum stable speed (km/h) |
90 |
90 |
||||
Maximum gradient |
20% |
20% |
||||
Range (NEDC) (km) (HICONICS motor) |
≥260 |
≥220 |
||||
Cargo box volume (m3) |
≥5.4 |
≥5.4 |
||||
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
||
Battery brand |
Tianjin Lishen |
Hengtian Gotion |
||||
Total battery energy (kWh) |
41.6 |
41.93 |
||||
Battery density (Wh/kg) |
≥135 |
≥135 |
||||
Battery cooling mode |
Natural cooling |
Natural cooling |
||||
Electric heating |
● |
● |
||||
Drive motor |
Motor brand |
HICONICS○ |
Oswell● |
Oswell● |
LINCONTROL○ |
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||
Motor rated/peak power (kW) |
30/60 |
30/60 |
30/60 |
30/70 |
||
Peak torque (N.m) |
225 |
220 |
220 |
230 |
||
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||
Charging mode |
Quick charge |
● |
● |
|||
Slow charge |
● |
● |
||||
Slow charging gun |
○ |
○ |
||||
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h normal temperature (20%~100%) |
||||
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
|||
Steering system |
Power steering |
EPS |
EPS |
|||
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
|||
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
||||
Braking system |
Front brake type |
Disc |
Disc |
|||
Rear brake type |
Drum |
Drum |
||||
Braking mode |
Hydraulic brake |
Hydraulic brake |
||||

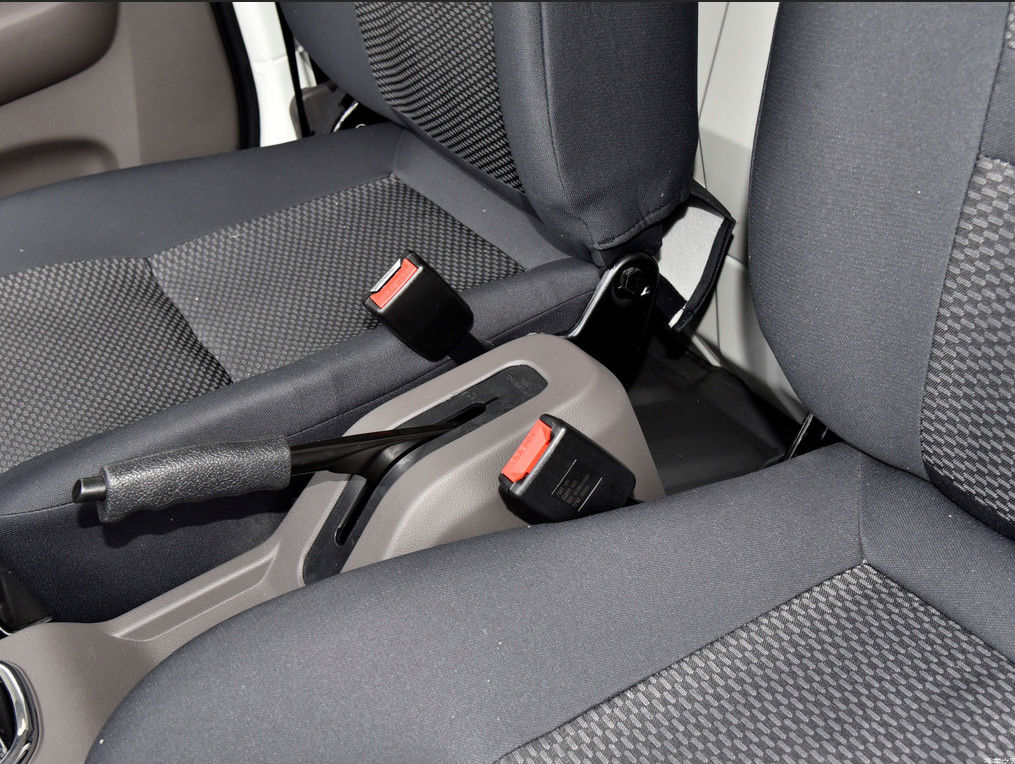

Parking brake type |
Handbrake |
Handbrake |
||||
Shift form |
Gear lever |
● |
— |
|||
Electronic knob |
— |
● |
||||
Tyre |
Tyre specifications |
195R14C 8PR |
195R14C 8PR |
|||
Rim material |
Steel |
Steel |
||||
Wheel hub cover (4 wheels) |
— |
— |
||||
Number of Tyres |
4 |
4 |
||||
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
||||
Door configuration |
Door |
Number of doors |
4 |
4 |
||

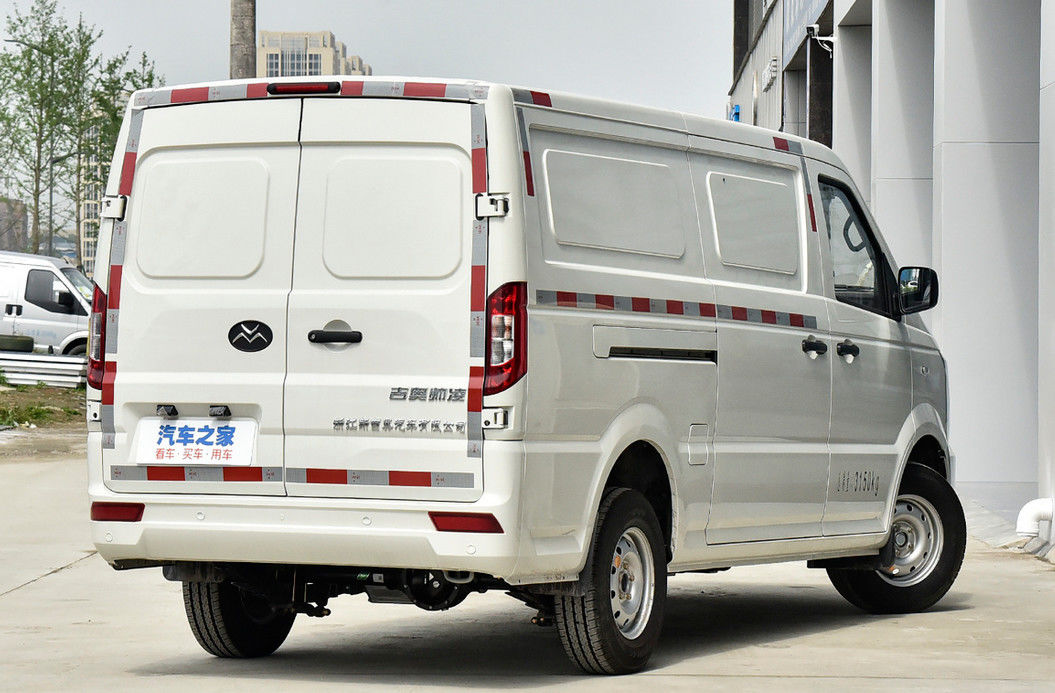

Side door form |
Manual side sliding door |
Manual side sliding door |
||||

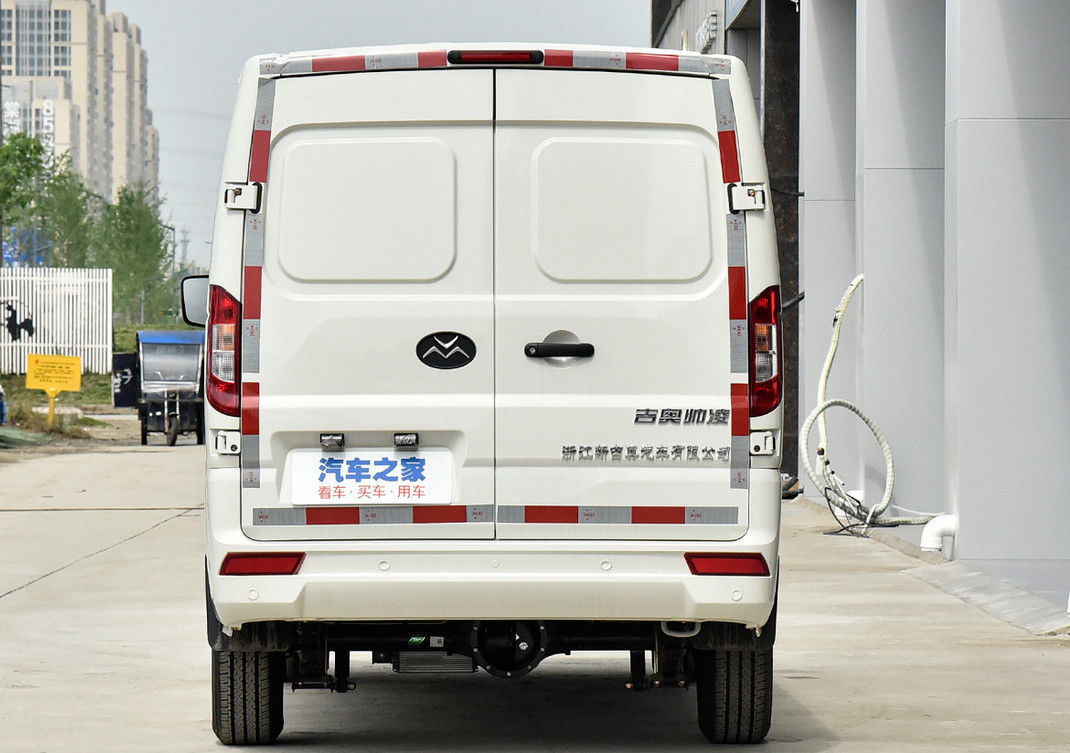

Tailgate form |
Door to door |
Door to door |
Intelligent electronic control
The UDS diagnostic function can take safe fault handling measures when a vehicle fails. The remote lock function can achieve remote control of the vehicle, enable management of operating vehicles without leaving the home, and have anti-theft effects.
City Distribution Preferred
The key parts of the vehicle body are made of high-strength steel, with circular structures supporting each other, featuring strong rigidity, structural stability, and strong bearing capacity. With a 4.8m flexible vehicle body, it also has a large volume of about 6m3 cargo compartments, and an ultra-strong bearing capacity of 1.5 tons. With the "green vehicle plate", it is indeed the first choice for urban distribution.
Company Profile
Our company was set up by a group of experts with over 20 years of developing, manufacturing, sales & marketing in electric vehicles.
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provide overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.
