HM01 Electric Cargo Van 5.4m3 All Electric Van Goods Transportation

HM01 Electric Cargo Van 5.4m3 All Electric Van Goods Transportation

HM01 Electric Cargo Van

5.4m3 All Electric Van

Electric Cargo Van 5.4m3

Place of Origin:

China

Brand Name:

New Gonow

Model Number:

HM01

Contact Us
Request A Quote
Product Details
Product Name:
Electric Cargo 5.4m³ Pure Electric Van For Logistics Goods Transportation
Overall Dimensions(mm):
4865×1715×2060
Curb Weight (kg):
1620
Total Mass (kg):
3150
Load Capacity (including People) (kg):
1530
Seats:
2
1km Maximum Speed (km/h):
95
30min Maximum Stable Speed (km/h):
90
Range (NEDC) (km) (HICONICS Motor):
≥260
Charging Time:
0.8~13 Hours
Max Torque:
220
Battery Power (kWh):
41.93/41.6/49.9
Internal Dimension Of Cargo Box (mm):
2650 * 1500 * 1350
Payment & Shipping Terms
Minimum Order Quantity
10
Price
Negotiable
Packaging Details
4865×1715×2060mm
Delivery Time
8 work days
Payment Terms
T/T
Supply Ability
200 units per month
Product Description

Electric Cargo 5.4m³ Pure Electric Van for Logistics Goods Transportation



Details:



Models

Tianjin Lishen version

Gotion version

Model No.

NGA5030XXYBEV2

NGA5030XXYBEV3

Basic parameters

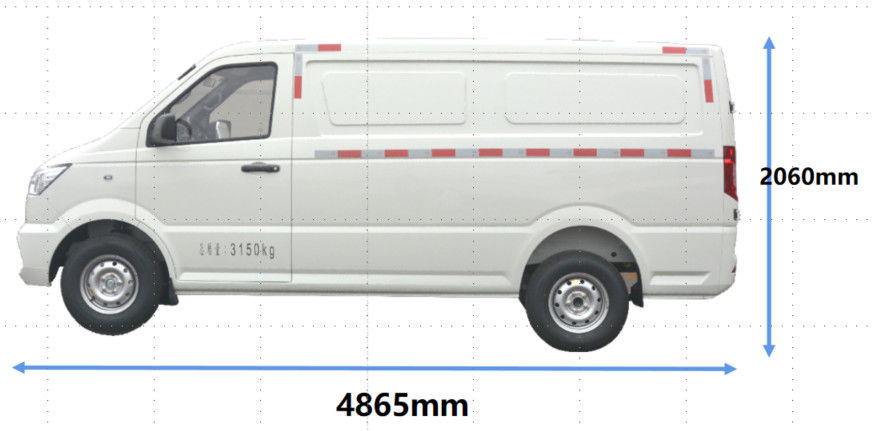

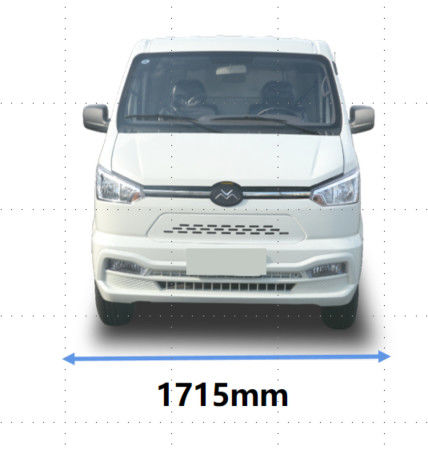

Overall dimensions(mm)

4865×1715×2060

4865×1715×2060

Curb weight (kg)

1620

1590

Total mass (kg)

3150

3150

Load capacity (including people) (kg)

1530

1560

Seats

2

2

1km maximum speed (km/h)

95

95

30min maximum stable speed (km/h)

90

90

Maximum gradient

20%

20%

Range (NEDC) (km) (HICONICS motor)

≥260

≥220

Cargo box volume (m3)

≥5.4

≥5.4

New energy system

Battery

Battery type

Lithium iron phosphate

Lithium iron phosphate

Battery brand

Tianjin Lishen

Hengtian Gotion

Total battery energy (kWh)

41.6

41.93

Battery density (Wh/kg)

≥135

≥135

Battery cooling mode

Natural cooling

Natural cooling

Electric heating

Drive motor

Motor brand

HICONICS○

Oswell●

Oswell●

LINCONTROL○

Motor type

Permanent magnet synchronization

Permanent magnet synchronization

Permanent magnet synchronization

Motor rated/peak power (kW)

30/60

30/60

30/60

30/70

Peak torque (N.m)

225

220

220

230

Motor cooling mode

Liquid cooling

Liquid cooling

Liquid cooling

Charging mode

Quick charge

Slow charge

Slow charging gun

Charging time (h)

Fast charging 0.8h (80%), slow charging 13h

Fast charging 0.8h (80%), slow charging 13h normal temperature (20%~100%)

Chassis system

Driving form

Rear-Wheel Drive

Rear-Wheel Drive

Steering system

Power steering

EPS

EPS

Suspension system

Front suspension

McPherson independent suspension

McPherson independent suspension

Rear suspension

Leaf spring dependent suspension

Leaf spring dependent suspension

Braking system

Front brake type

Disc

Disc

Rear brake type

Drum

Drum

Braking mode

Hydraulic brake

Hydraulic brake

Parking brake type

Handbrake

Handbrake

Shift form

Gear lever

Electronic knob

Tyre

Tyre specifications

195R14C 8PR

195R14C 8PR

Rim material

Steel

Steel

Wheel hub cover (4 wheels)

Number of Tyres

4

4

spare tire

○(185R14LT 8PR)

○(185R14LT 8PR)

Door configuration

Door

Number of doors

4

4

Side door form

Manual side sliding door

Manual side sliding door

Tailgate form

Door to door

Door to door





HM01, a 4.8m new energy electric van is divided into three models according to the battery power: Gotion version (41.93 degrees), Lishen standard endurance version (41.6 degrees) and Lishen high endurance version (49.92 degrees). The vehicle body is 4.865m long, the rated load is 1.43t, and the cargo box volume is more than 5.4m3.
The whole vehicle design is integrated with sci-fi elements, and the family headlights are continued. The grille is connected with the headlights with European hardy design to increase the metal texture; The trapezoidal shape design of the lower grille improves the overall tension of the car head, making the whole front face look layered and dynamic; The LOGO of the whole vehicle adopts the drop molding effect to improve the quality of the whole vehicle.









HM01 Electric Cargo Van 5.4m3 All Electric Van Goods Transportation 0

HM01 Electric Cargo Van 5.4m3 All Electric Van Goods Transportation 1



Company Profile



Our company was set up by a group of experts with over 20 years of developing, manufacturing, sales   & marketing in electric vehicles.
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provide overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.



HM01 Electric Cargo Van 5.4m3 All Electric Van Goods Transportation 2
