Place of Origin:
EEC
Brand Name:
KUNKE
Model Number:
XR
Fast Speed 2 Seats EV Pickup Truck Manufacturer Support Customize Factory Electric Pickup Mini Truck
Parameters EV Pickup Truck:
| parameter configuration | EV Pickup Truck | |
| Model name | XR | 4XR |
| Model ID | KK1121D10 | KK1121S10 |
| Vehicle status | 73.6V 10.5KW | 73.6V 10.5KW |
| Right hand drive | ○ | ○ |
| Length × Width × Height (mm) | 3650×1510×1820 | 3850X1510X1845 |
| Container internal dimensions | 1620X1245X300 | 900X1315X400 |
| Wheelbase (mm) | 2340 | 2520 |
| Front track (mm) | 1315 | 1315 |
| Rear track (mm) | 1315 | 1315 |
| Front suspension (mm) | 455 | 455 |
| Rear suspention (mm) | 705 | 705 |
| Curb weight (kg) | 850 | 885 |
| Load quality (kg) | 300 | 150 |
| Seats No. | 2 | 4 |
| Gross weight (kg) | 1280 | 1295 |
| Performance parameters | ||
| Max speed (km/h) | 80 | 80 |
| Acceleration time s (0-40km) | 20 | 20 |
| Max grade | 0.35 | 0.35 |
| Min turning diameter (m) | ≤11 | ≤11 |
| Maximum angle | 30(outer wheel)/32(inner wheel) | 30(outer wheel)/32(inner wheel) |
| Approach angle (°) | ≥55 | ≥55 |
| Departure angle (°) | ≥35 | ≥35 |
| Bauchfreiheit (mm, no load) | ≥200 | ≥200 |

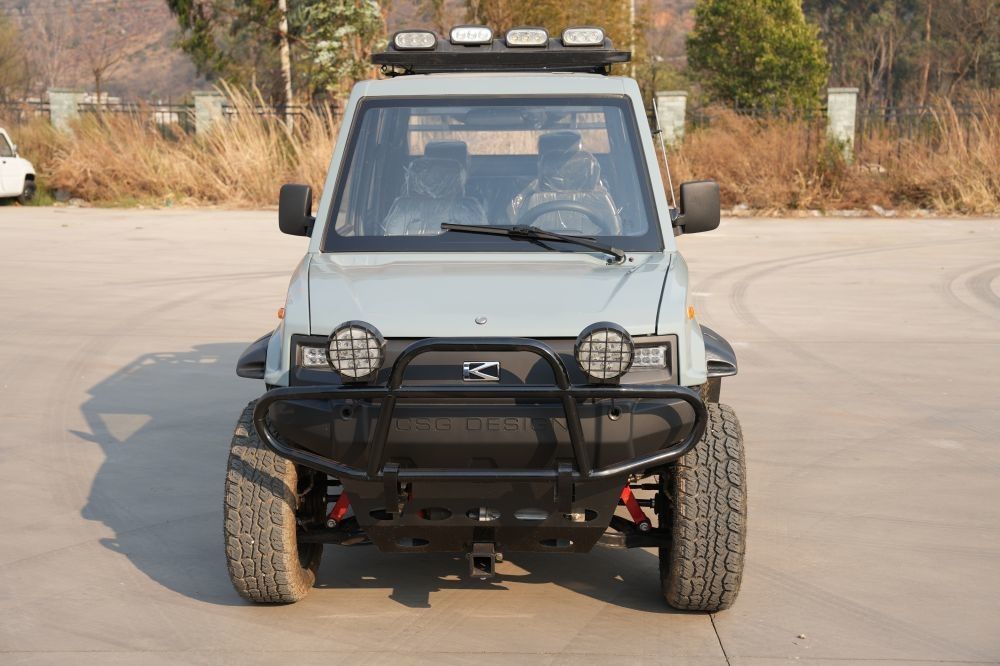

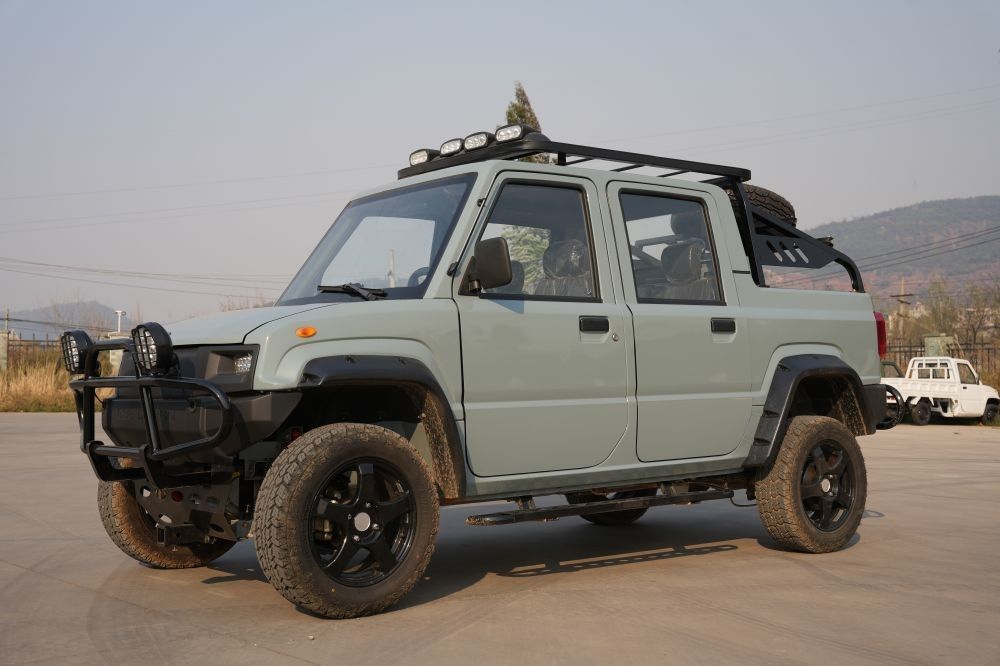

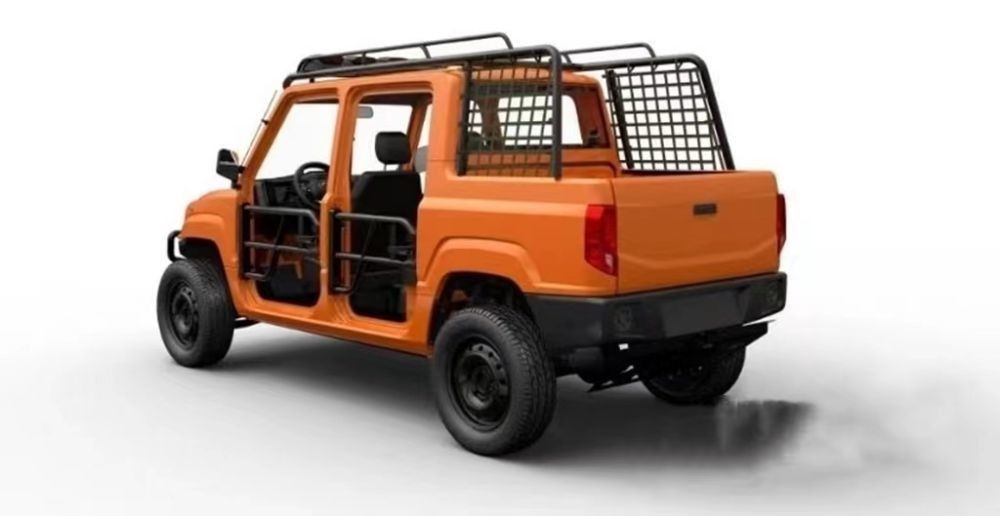

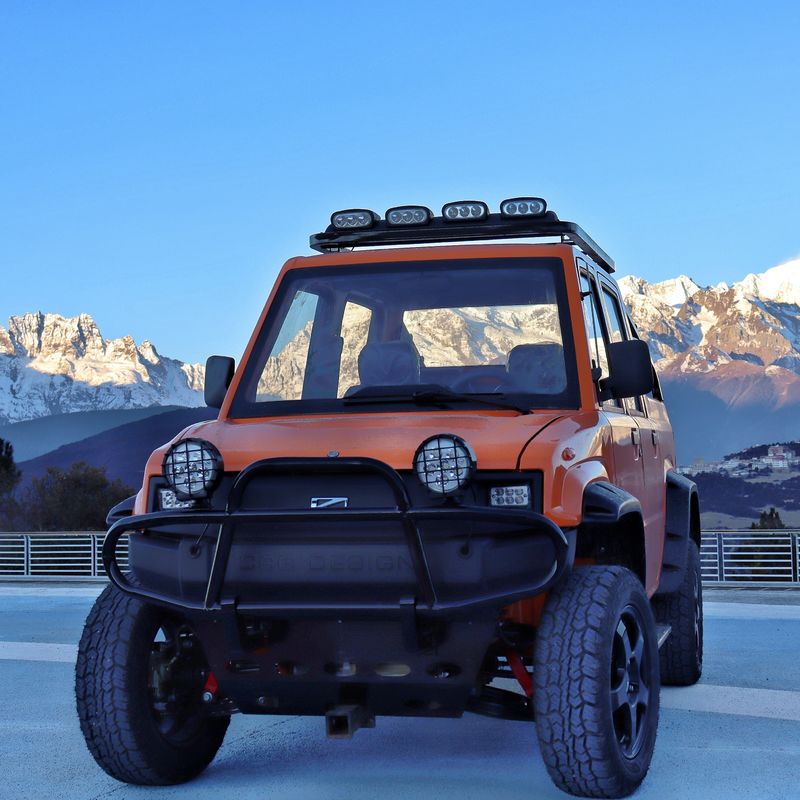

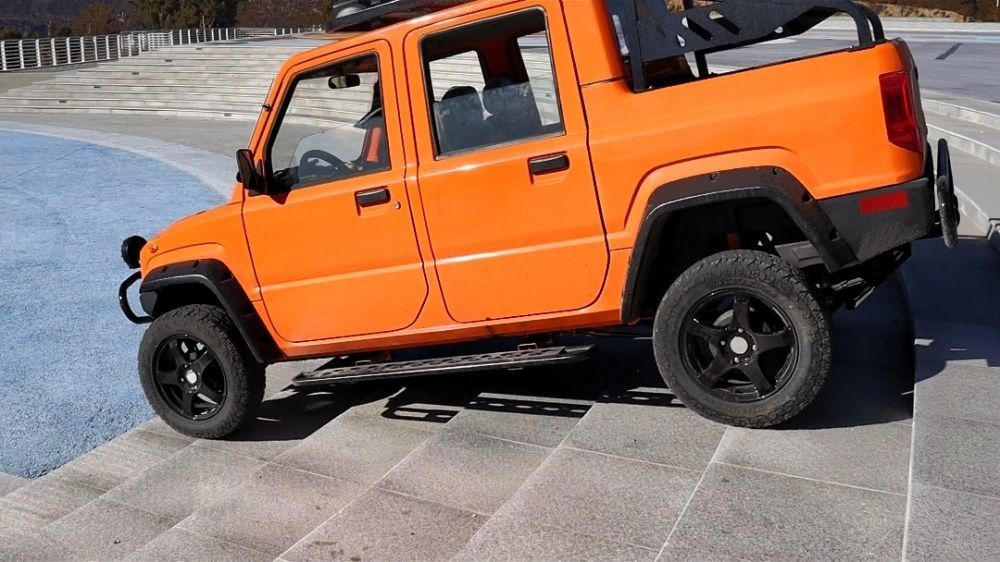

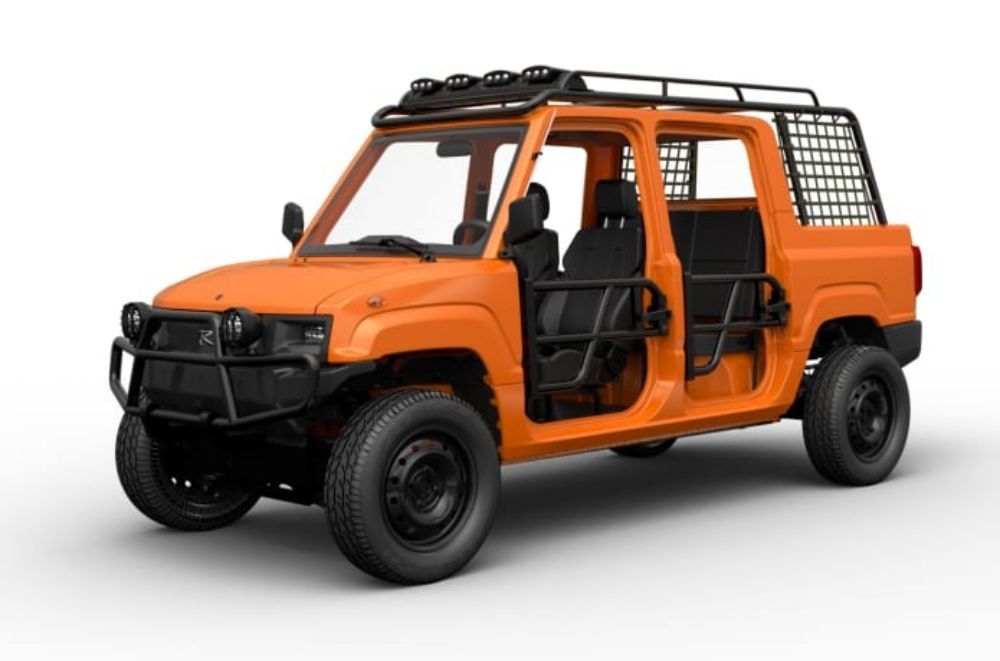

Appereance
Company Profile
Our company was set up by a group of experts with over 20 years of developing, manufacturing, sales & marketing in electric vehicles.
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provide overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.
