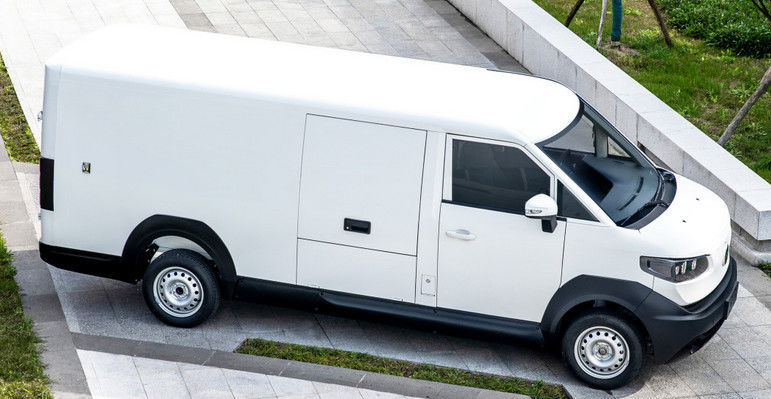

7.2m3 Large Fully Electric Minivan New Gonow Electric Transit Van

7.2m3 Large Fully Electric Minivan New Gonow Electric Transit Van

7.2m3 Large Fully Electric Minivan

New Gonow Electric Transit Van

7.2m3 Electric Transit Van

Place of Origin:

China

Brand Name:

New Gonow

Model Number:

HU01

Contact Us
Request A Quote
Product Details
Overall Dimensions:
5428*1780*1950mm
Product Name:
EV Logistics Cargo Van Electric Large Cargo Box Transportation Vehicle
Front Suspension(mm):
798
Rear Suspension(mm):
1280
Wheel Base(mm):
3350
Container Size:
3010*1710*1400mm
Container Volume(m³):
7.2
Full Load Mass (kg):
2810
Full Load Front Axle Load (kg):
1150
Payment & Shipping Terms
Minimum Order Quantity
10
Price
Negotiable
Packaging Details
5428*1780*1950mm
Delivery Time
8 work days
Payment Terms
T/T
Supply Ability
200 units per month
Product Description

New Pure Electric Minivans Delivery Van MPV Electric Cargo Mini Van Electric Car



Product Configuration





Items

HU01 (7m3 Logistics vehicle)- standard model

HU01 (7m3 Logistics vehicle)- Logistics links model

HU01 (7m3 Logistics vehicle)- EU version

Basic parameters

Overall dimensions

Length(mm)

5428

Width(mm)

1780

Height(mm)

1950

Front suspension(mm)

798

Rear suspension(mm)

1280

Wheel base(mm)

3350

Front track width(mm)

1558

Rear track width(mm)

1565

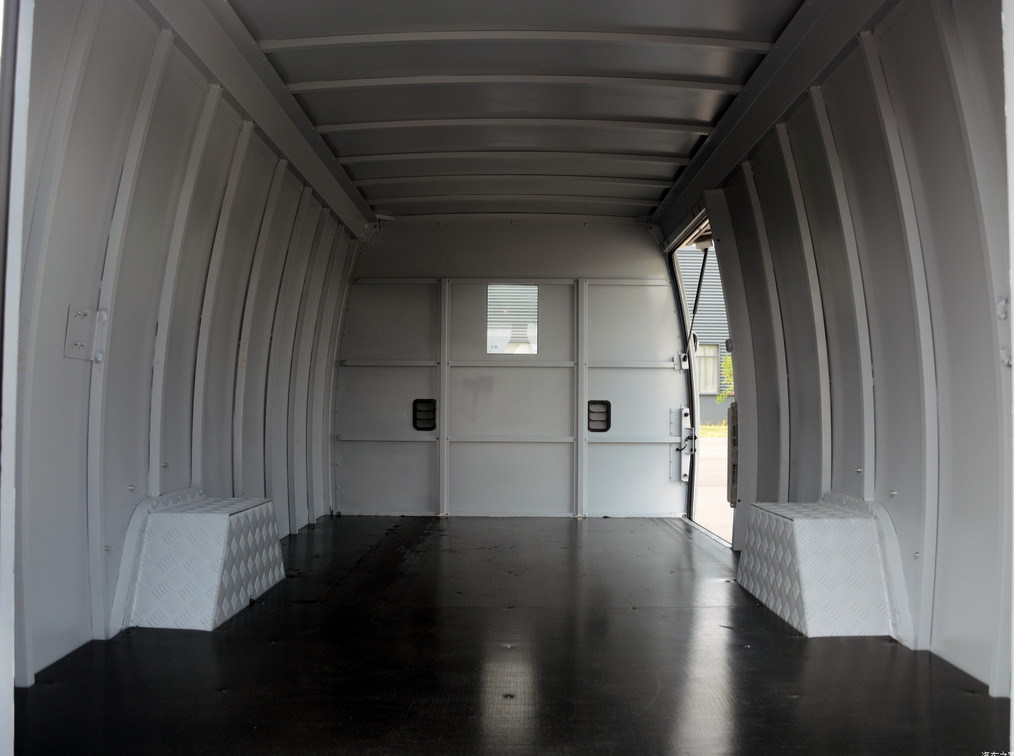

Container size

Internal length(mm)

3010

Inside width(mm)

1710

Inner height(mm)

1400

Container volume(m³)

7.2

Quality parameters

Unladen mass (kg)

1445

1470

1470

Servicing front axle load (kg)

850

890

890

Rear servicing axle load (kg)

595

580

580

Rated load mass (kg)

1235

1210

1210

Full load mass (kg)

2810

Full load front axle load (kg)

1150

Axle load after full load (kg)

1660

Performance parameters

30min maximum stable speed (km/h)

≥85

1km maximum instantaneous speed (km/h)

≥90

0~50km/h acceleration time (s)

≤6

50~80km/h acceleration time (s)

≤10

Maximum gradient

≥20%

Energy consumption (Ekg) (Wh/km. kg)

≤0.28

New energy system

Battery

Battery type

Lithium iron phosphate

Battery manufacturer

Hengtian Gotion

CATL

CATL

Power (kWh)

41.93

50.23

50.23

Voltage level (V)

332.8

334.88

334.88

Energy density (Wh/kg)

≥135

Battery pack cooling mode

Natural cooling

Battery electric heating

Motor

Motor type

Permanent magnet synchronous motor

Motor rated/peak power (kW)

35/70

Motor rated/peak torque (N.m)

80/190

Motor rated/peak speed (rpm)

4178/10000

Motor cooling mode

water-cooling

Charging mode

Quick charge

●(China standard)

●(European Standard)

Slow charge

●(China standard)

●(European Standard)

Slow charging gun

○(Portable AC charging gun - China standard)

○(European Standard)

Fast charging time (h) (30%~80%)

≤1

Slow charging time (h) (20%~100%)

≤13.5

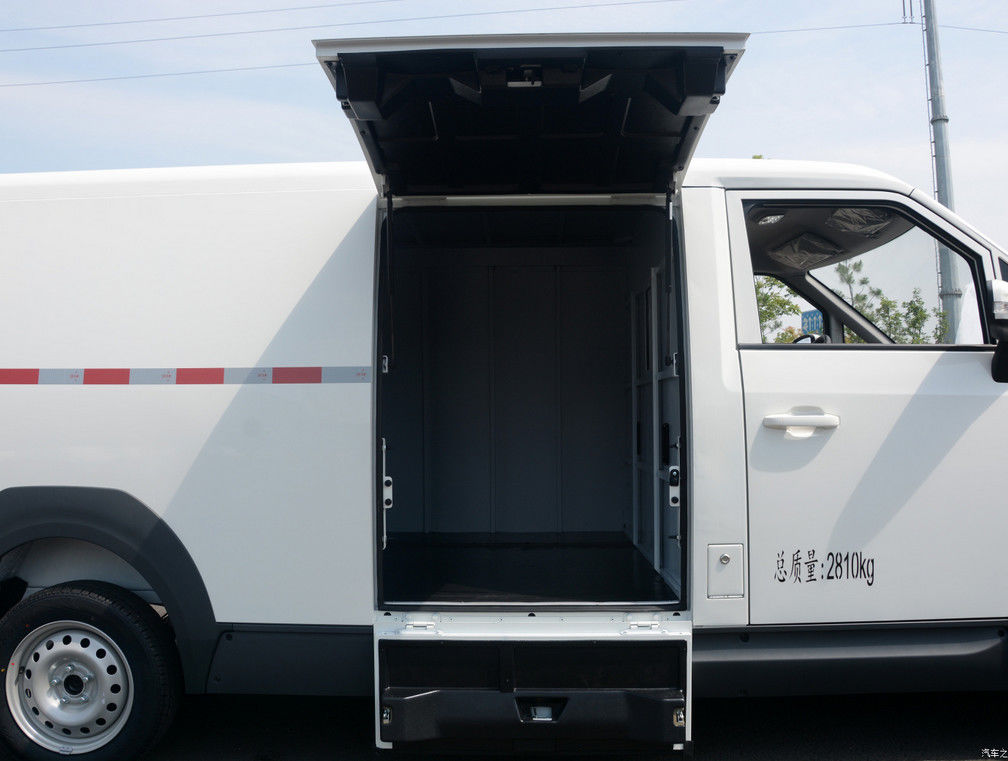

From the many details of the car body, it can be seen that the New Gonow has put a lot of effort into improving vehicle transportation efficiency. The new car of the New Gonow adopts a 270 ° split tailgate, which facilitates the loading and unloading of large goods in different scenarios. The width of the tailgate reaches 1240mm, which can meet the loading and unloading of conventional standard plates and pallets. The right side adopts a lift up door design, with a fashionable design. The width of the car door is 820mm, making it easy to access commonly used cardboard boxes and large items. The car door design covers various logistics delivery scenarios.







7.2m3 Large Fully Electric Minivan New Gonow Electric Transit Van 0

7.2m3 Large Fully Electric Minivan New Gonow Electric Transit Van 1



Company Profile



Our company was set up by a group of experts with over 20 years of developing, manufacturing, sales   & marketing in electric vehicles.
Our products are widely exported to European, American, Southeast Asian and Middle East countries, winning high customers, dealers and importers satisfaction.
We provide overseas partners and customers with up-to-date, trend-leading design and well-engineered products and related technical support.



7.2m3 Large Fully Electric Minivan New Gonow Electric Transit Van 2
