Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HU01
New Gonow 7m3 New Generation Electric Cargo Van for Logistics Goods Disctribution
Configuration sheet:
|
Items |
HU01 (7m3 Logistics vehicle)- standard model |
HU01 (7m3 Logistics vehicle)- Logistics links model |
HU01 (7m3 Logistics vehicle)- EU version |
|||
|
Basic parameters |
Overall dimensions |
Length(mm) |
5428 |
|||
|
Width(mm) |
1780 |
|||||
|
Height(mm) |
1950 |
|||||
|
Front suspension(mm) |
798 |
|||||
|
Rear suspension(mm) |
1280 |
|||||
|
Wheel base(mm) |
3350 |
|||||
|
Front track width(mm) |
1558 |
|||||
|
Rear track width(mm) |
1565 |
|||||
|
Container size |
Internal length(mm) |
3010 |
||||
|
Inside width(mm) |
1710 |
|||||
|
Inner height(mm) |
1400 |
|||||
|
Container volume(m³) |
7.2 |
|||||
|
Quality parameters |
Unladen mass (kg) |
1445 |
1470 |
1470 |
||
|
Servicing front axle load (kg) |
850 |
890 |
890 |
|||
|
Rear servicing axle load (kg) |
595 |
580 |
580 |
|||
|
Rated load mass (kg) |
1235 |
1210 |
1210 |
|||
|
Full load mass (kg) |
2810 |
|||||
|
Full load front axle load (kg) |
1150 |
|||||
|
Axle load after full load (kg) |
1660 |
|||||
|
Performance parameters |
30min maximum stable speed (km/h) |
≥85 |
||||
|
1km maximum instantaneous speed (km/h) |
≥90 |
|||||
|
0~50km/h acceleration time (s) |
≤6 |
|||||
|
50~80km/h acceleration time (s) |
≤10 |
|||||
|
Maximum gradient |
≥20% |
|||||
|
Energy consumption (Ekg) (Wh/km. kg) |
≤0.28 |
|||||
|
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
|||
|
Battery manufacturer |
Hengtian Gotion |
CATL |
CATL |
|||
|
Power (kWh) |
41.93 |
50.23 |
50.23 |
|||
|
Voltage level (V) |
332.8 |
334.88 |
334.88 |
|||
|
Energy density (Wh/kg) |
≥135 |
|||||
|
Battery pack cooling mode |
Natural cooling |
|||||
|
Battery electric heating |
● |
|||||
|
Motor |
Motor type |
Permanent magnet synchronous motor |
||||
|
Motor rated/peak power (kW) |
35/70 |
|||||
|
Motor rated/peak torque (N.m) |
80/190 |
|||||
|
Motor rated/peak speed (rpm) |
4178/10000 |
|||||
|
Motor cooling mode |
water-cooling |
|||||
|
Charging mode |
Quick charge |
●(China standard) |
●(European Standard) |
|||
|
Slow charge |
●(China standard) |
●(European Standard) |
||||
|
Slow charging gun |
○(Portable AC charging gun - China standard) |
○(European Standard) |
||||
|
Fast charging time (h) (30%~80%) |
≤1 |
|||||
|
Slow charging time (h) (20%~100%) |
≤13.5 |
|||||

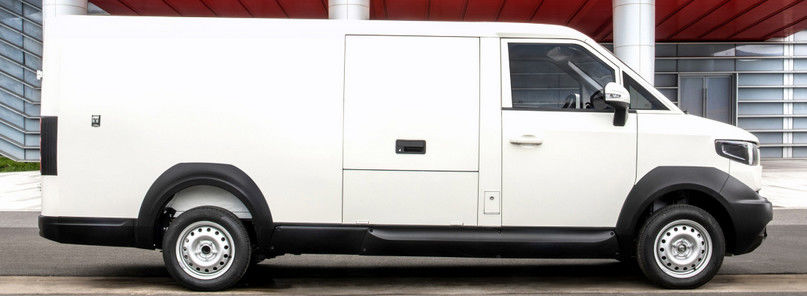

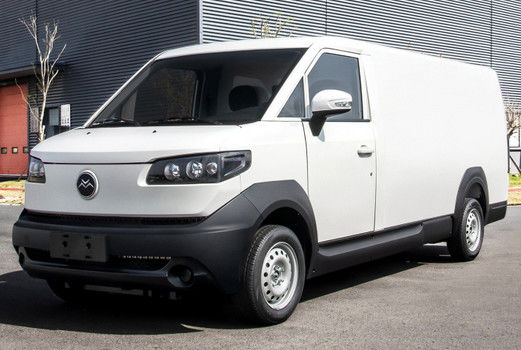

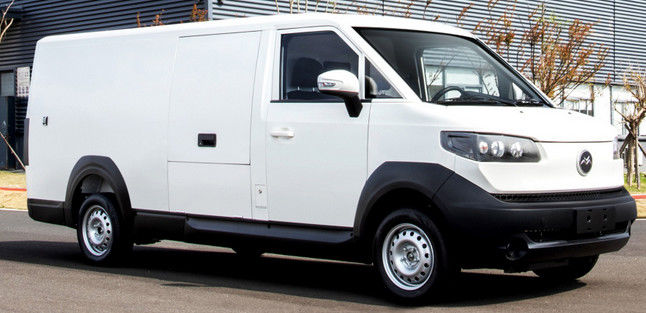

In terms of appearance, HU01 adopts a fashionable appearance that is more in line with young aesthetics, and the integrated large white body highlights a minimalist style. Compared to the previous new energy logistics vehicle products of New Gonow, HU01 further increased the body size and cargo volume. The length, width, and height of the vehicle body are 5428 mm * 1780 mm * 1950 mm, with a cargo volume of 7.2m3, which is about 2m3 more than the mainstream cargo logistics vehicles in the market. It can be said that the production tool properties of new energy logistics vehicles have been fully utilized.
