Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HK01 Fence
4.5T 4.15 Meter Single Row Pure Electric Cargo Van EV Fence Transport Vehicle 80.64kWh
Specification sheet:
|
HK01 parameter and configuration table |
|||
|
Basic parameters |
Type |
Breast board (fence) |
|
|
Wheelbase (mm) |
3360 |
||
|

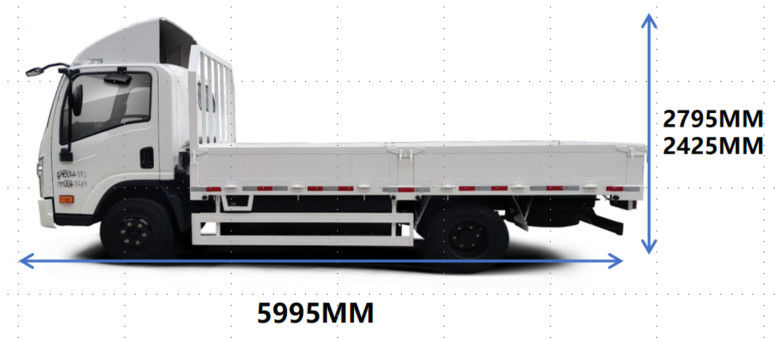

Overall dimension (mm) |
5995×2150/2200×2425 |
||
|
Kerb mass (kg) |
2750 |
||
|
Carrying mass (kg) |
1615 |
||
|
Total mass (kg) |
4495 |
||
|
Number of Seats |
2 |
||
|
Maximum vehicle speed (km/h) |
≥100 |
||
|
Maximum gradient |
≥25% |
||
|
Constant speed range (constant speed method) (km) |
≥310 |
||
|

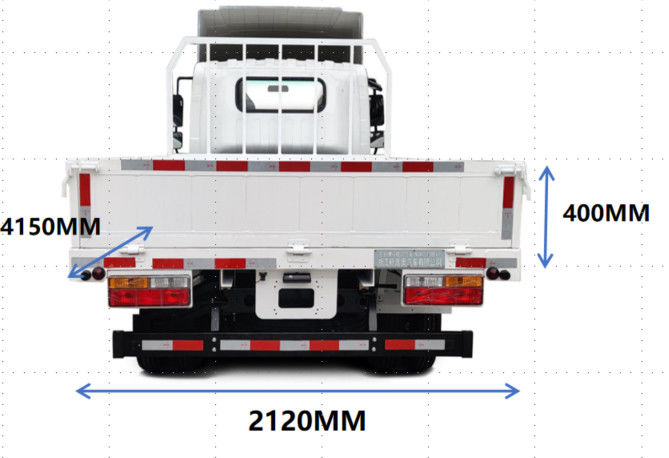

Interior dimension of cargo compartment (mm) |
4150×2090×400 |
||
|
Cabinet material |
Steel |
||
|
Tyre specification |
7.00R16LT 10PR |
||
|
New energy system |
Battery |
Battery brand |
Lishen |
|
Battery type |
Lithium iron phosphate |
||
|
Total battery energy (kWh) |
80.64 |
||
|
Battery cooling mode |
Natural cooling |
||
|
Drive motor |
Motor type |
Permanent magnet synchronization |
|
|
Motor rated/peak power (kW) |
58/130 |
||
|
Motor cooling method |
Liquid cooling |
||
|
Charging method |
Fast/slow charging |
● |
|
|
Slow charge gun |
O |
||
|
Charging time (h) (80%) |
Fast charging ≤ 2h; Slow charging ≤ 13h |
||
|
Battery motor heat |
● |
||
|
Other configurations |
AM/FM |
● |
|
|
MP3 |
● |
||
|
USB |
● |
||
|
SD card slot |
● |
||
|
Ashtray |
● |
||
|
Cigarette lighter |
● |
||
|
Cup holder |
● |
||
|
Door ajar reminder |
● |
||
|
Low speed alarm |
● |
||
|
Remote monitoring |
● |
||
|
ABS anti lock |
● |
||
|
Brake force distribution |
● |
||
|
Shroud |
O |
||
|
Rear reversing radar |
O |
||
|
Reverse video image |
O |
||
|
●: Standard O: Optional -: Not available |
|||

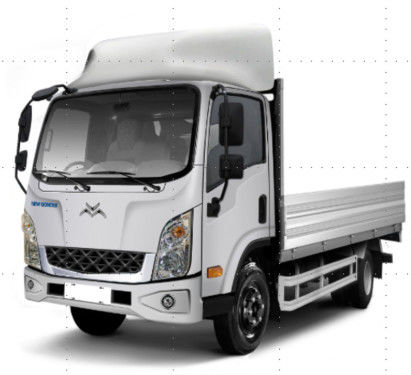

HK01 adopts a new front face design with lion modeling elements, and a chrome plated smiling face design;
The four sides of the cab adopt hydrodynamic bionic appearance design to reduce wind resistance and improve the power and economy of the whole vehicle.
The upper panel of the front wall is full and has tension. The continuous curved surface makes the front face more three-dimensional and has a strong sense of sophistication.
The electric drive system adopts electric high-speed motor+single reduction drive mode. The drive motor is designed with high speed, high efficiency, high power density and low noise. The motor efficiency can reach 96% at most, and the proportion of high efficiency area can reach more than 90%. The single-stage reducer realizes the function of reducing speed and increasing torque through two sets of gears, with simple structure and reliable performance compared with the AMT two gear box system.
