Micro Middle Electric Cargo Van 5.0m3 5.7m3 Container 220KM Mileage

Items

4.5m micro-van

4.88m middle van

Basic parameters

Overall dimension (mm)

4500×1680×2000

4880×1680×2000

Container size (mm)

2550×1485×1320

2930×1485×1320

Kerb mass (kg)

≤1450

≤1550

Total mass (kg)

2600

2600

Rated load capacity (kg)

≥1020

≥920

Maximum speed (km/h)

80

80

Maximum climbing slope

20%

20%

Endurance mileage (Chinese conditions) (km)

≥220

≥220

Cargo compartment volume (m3)

5.0

5.7

New energy system

Battery

Battery brand

Lishen

Yiwei Lithium Energy

Lishen

Yiwei Lithium Energy

Battery type

Lithium iron phosphate

Lithium iron phosphate

Total battery energy (kWh)

38.4

38.64

41.6

41.86

Battery cooling mode

Natural cooling

Natural cooling

Electric heating

●

●

Motor

Motor brand

Lincontrol

Tongyu

Lincontrol

Tongyu

Motor type

Permanent magnet synchronization

Permanent magnet synchronization

Rated/peak power of motor (kW)

30/60

30/60

Peak torque (N.m)

≥220

≥220

Motor cooling mode

Liquid cooling

Liquid cooling

Charging mode

Fast/slow charging

●/○

●/○

Slow charge gun

○

○

Charging time (h)

Fast charge 0.8h (80%), slow charge 13h (20% - 100%)

Fast charge 0.8h (80%), slow charge 13h (20% - 100%)

Chassis system

Driving form

Rear drive

Rear drive

Steering system

Power steering

EPS

EPS

Suspension system

Front suspension type

McPherson independent suspension

McPherson independent suspension

Rear suspension type

Leaf spring independent suspension

Leaf spring independent suspension

Braking system

Front brake type

Disc

Disc

Rear brake type

Drum

Drum

Brake type

Hydraulic brake

Hydraulic brake

Parking brake type

Hand brake

Hand brake

Shifting mode

Shift lever

—

—

Electronic knob

●

●

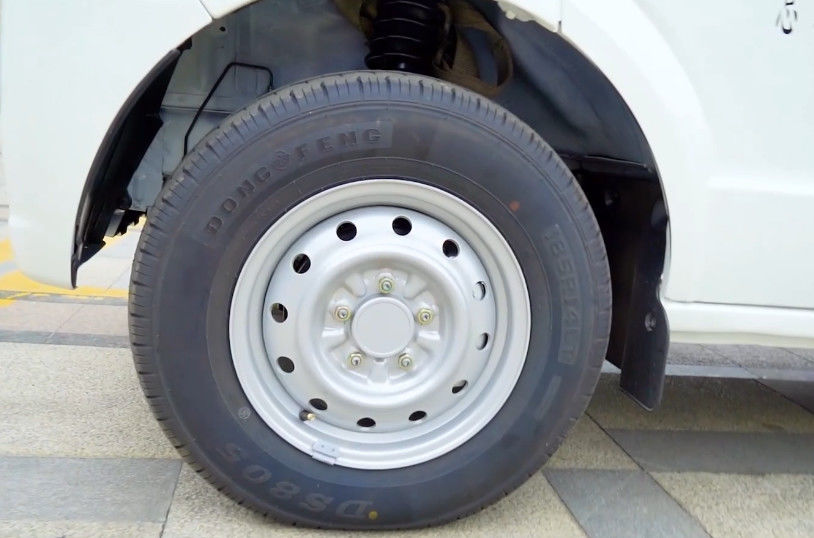

Tyre

Tyre specification

185R14LT 8PR

185R14LT 8PR

Rim material

Steel

Steel

Number of tires

4

4

spare tire

○ (185R14LT 8PR)

○ (185R14LT 8PR)

Shaft head plug

○ (front and rear wheels)

○ (front and rear wheels)

Door configuration

Car door

Side door form

Right side sliding door

Right side sliding door

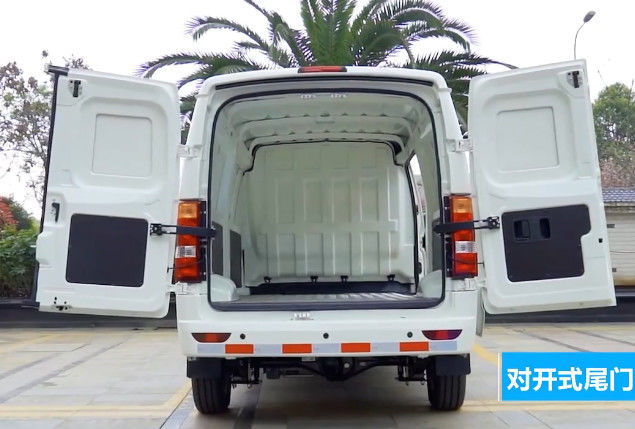

Tailgate form

Door to door

Door to door

Security configuration

Safety air bag

Driver/co-driver

—/—

—/—

Safety belt

Ordinary three-point safety belt

Driver ●/co-driver ●

Driver ●/co-driver ●

Adjustable seat belt height

Driver -/co-driver -

Driver -/co-driver -

Reminder of safety belt not fastened

Driver ●/co-driver -

Driver ●/co-driver -

Central locking

Front door central locking

●

●

Sliding door central locking

●

●

Rear double door central locking

—

—

Automatic locking

—

—

Radar/image

Front parking radar

—

—

Rear reversing radar

● (3 probes)

● (3 probes)

Reversing video image

—

—

Blind area monitoring

—

—

Key

Mechanical key

●

●

Remote control key

●

●

Departure reminder

Driver ●

Driver ●

Door ajar reminder

● (except for rear door opening)

● (except for rear door opening)

Low speed alarm

●

●

Remote monitoring

●

●

ABS anti-lock

●

●

Brake force distribution

●

●

Tire pressure monitoring device

—

—

Fatigue driving tips

—

—

Lane departure warning system

—

—

External configuration

Front bumper

●

●

Front grille

●

●

Outer knob

Front door, sliding door

Black

Black

Rear back door

Black

Black

Mudguard

Front/rear fender

●/●

●/●

Reflector/reflector

●

●

Internal configuration

Steering wheel

Steering wheel material

PU foaming

PU foaming

Steering wheel adjustment (manual)

—

—

Multi-function steering wheel

—

—

Combination instrument

Trip computer display

—

—

Mechanical combination instrument

●

●

All LCD combination instrument

—

—

Cruise

Cruise control

—

—

Adaptive cruise

—

—

Instrument panel

Glove box

●

●

Ashtray

●

●

Cigarette lighter base (12V power supply)

●

●

Cup-holder

●

●

220V power supply

—

—

Interior trim panel

A-pillar guard

●

●

C-pillar lower guard board

—

—

B-pillar Lower guard board

●

●

Ceiling

●

●

Cargo compartment floor

● PP material (cargo area) ○ Ice flower aluminum plate (cargo area)

● PP material (cargo area) ○ Ice flower aluminum plate (cargo area)

Side wall interior trim panel

● Honeycomb board

● Honeycomb board

Rear wall (between cab and cargo compartment)

●

●

Sun visor (without vanity mirror)

Driver ●/co-driver -

Driver ●/co-driver -

Ceiling handle

—

—

A/B column boarding handle

—

—

Sliding door threshold

Integral

Integral

Backplane tool box

—

—

Tachograph

—

—

ETC

○

○

Emergency hammer

—

—

Fire Extinguisher

—

—

Fire extinguishing device

—

—

Triangle warning board

●

●

Reflective Vest

●

●

On-board tools

●

●

Lifting jack

●

●

Seat configuration

Seat material

knitting

knitting

Seat fore and aft adjustment

Driver ●/co-driver ●

Driver ●/co-driver ●

Seat height adjustment

Driver -/co-driver -

Driver -/co-driver -

Backrest adjustment

Driver ●/co-driver ●

Driver ●/co-driver ●

Upper and lower adjustable head restraints

Driver ●/co-driver ●

Driver ●/co-driver ●

Multimedia configuration

CD/DVD player

—

—

AM/FM

●

●

MP3

●

●

USB

● (With the function of charging and playing music in USB)

● (With the function of charging and playing music in USB)

Number of speakers

2

2

Light configuration

High beam

LED

LED

Low beam

LED

LED

Front fog lamp

—

—

Rear fog lamp

●

●

Daytime running light

—

—

Cab ceiling lamp

●

●

Cargo compartment ceiling lamp

●

●

License plate lamp

●

●

Side turn lamp

●

●

Headlamp height adjustment

●

●

Cornering auxiliary lighting

—

—

High-mounted brake lamp

●

●

Glass/rear view mirror

Car window

Power window

●

●

One-button up/down function

—

—

Glass/rearview mirror

Middle ordinary glass

Blind window

Blind window

Rear plain glass

Blind window

Blind window

Type of rearview mirror

Ⅲ

Ⅲ

Interior rearview mirror

—

—

Manual adjustment of exterior rearview mirror

●

●

Front wiper

Bony front wiper

●

●

Air conditioning system

Front row

Manual air conditioner

●

●

Automatic air conditioner

—

—

Warm wind

●

●

Back row

Independent air conditioner

—

—

Rear seat air outlet

—

—

Other configurations

On-board OBD system

●

●

Remote locking function

●

●

Remarks:

●: Standard configuration ○: Optional -: Not equipped
