Place of Origin:
China
Brand Name:
New Gonow
Model Number:
SW01 shuaibao

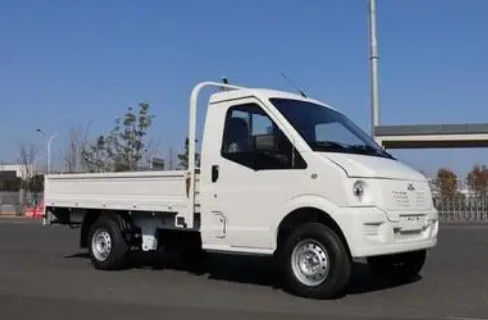

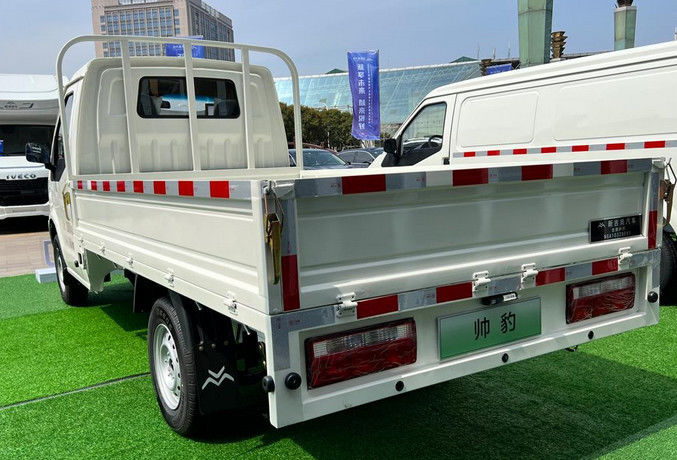

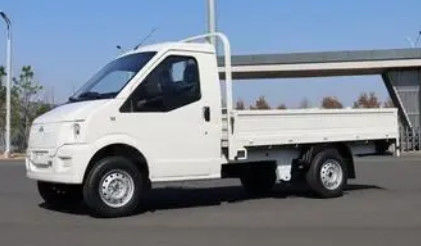

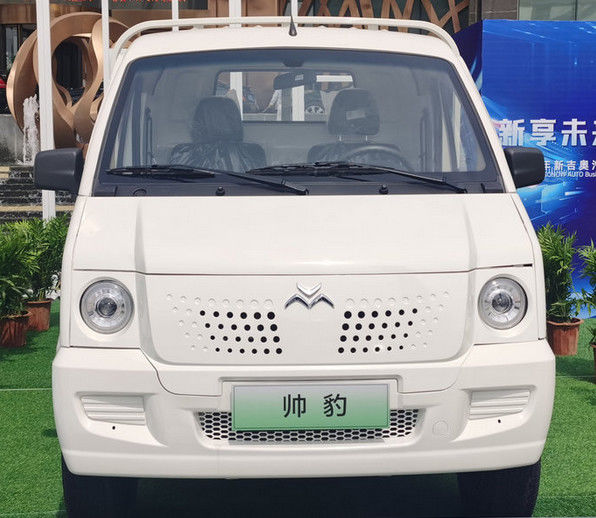

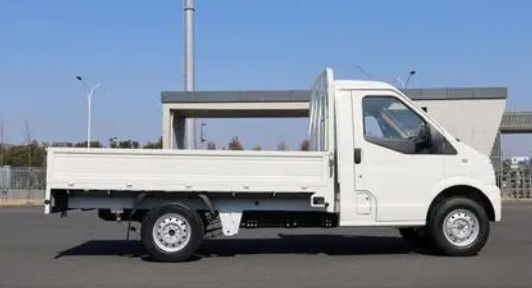

2.6T 2.88m Electric Cargo Van Single Row Pure Electric Box Micro Van 41.6 kWh from New Gonow
Specification Data:
|
Items |
Breast board |
Cargo box |
Grating |
||||
Basic parameters |
Overall dimension (mm) |
4885×1755×2075 |
4900×1735×2445 |
4880×1755×2445 |
||||
Container size (mm) |
2830×1670×360 |
2880×1670×1600 |
2860×1670×360 |
|||||
Kerb mass (kg) |
1490 |
1625 |
1600 |
|||||
Total mass (kg) |
2600 |
2600 |
2600 |
|||||
Rated load capacity (kg) |
980 |
845 |
870 |
|||||
Maximum speed (km/h) |
80 |
80 |
80 |
|||||
Maximum climbing slope |
20% |
20% |
20% |
|||||
Endurance mileage (Chinese conditions) (km) |
≥220 |
≥220 |
≥220 |
|||||
Cargo compartment volume (m3) |
/ |
7.7 |
/ |
|||||
New energy system |
Battery |
Battery brand |
Lishen |
Yiwei Lithium Energy |
Lishen |
Yiwei Lithium Energy |
Lishen |
Yiwei Lithium Energy |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
Lithium iron phosphate |
|||||
Total battery energy (kWh) |
41.6 |
41.86 |
41.6 |
41.86 |
41.6 |
41.86 |
||
Battery cooling mode |
Natural cooling |
Natural cooling |
Natural cooling |
|||||
Electric heating |
● |
● |
● |
|||||
Motor |
Motor brand |
Lincontrol |
Tongyu |
Lincontrol |
Tongyu |
Lincontrol |
Tongyu |
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||||
Rated/peak power of motor (kW) |
30/60 |
30/60 |
30/60 |
|||||
Peak torque (N.m) |
≥220 |
≥220 |
≥220 |
|||||
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||||
Charging mode |
Fast charging |
● |
● |
● |
||||
Slow charge |
○ |
○ |
○ |
|||||
Slow charge gun |
○ |
○ |
○ |
|||||
Charging time (h) |
Fast charge 0.8h (80%), slow charge 13h (20% - 100%) |
Fast charge 0.8h (80%), slow charge 13h (20% - 100%) |
Fast charge 0.8h (80%), slow charge 13h (20% - 100%) |
|||||
Chassis system |
Driving form |
Rear drive |
Rear drive |
Rear drive |
||||
Steering system |
Power steering |
EPS |
EPS |
EPS |
||||
Suspension system |
Front suspension type |
McPherson independent suspension |
McPherson independent suspension |
McPherson independent suspension |
||||
Rear suspension type |
Leaf spring independent suspension |
Leaf spring independent suspension |
Leaf spring independent suspension |
|||||
Braking system |
Front brake type |
Disc |
Disc |
Disc |
||||
Rear brake type |
Drum |
Drum |
Drum |
|||||
Brake type |
hydraulic brake |
hydraulic brake |
hydraulic brake |
|||||
Parking brake type |
Hand brake |
Hand brake |
Hand brake |
|||||

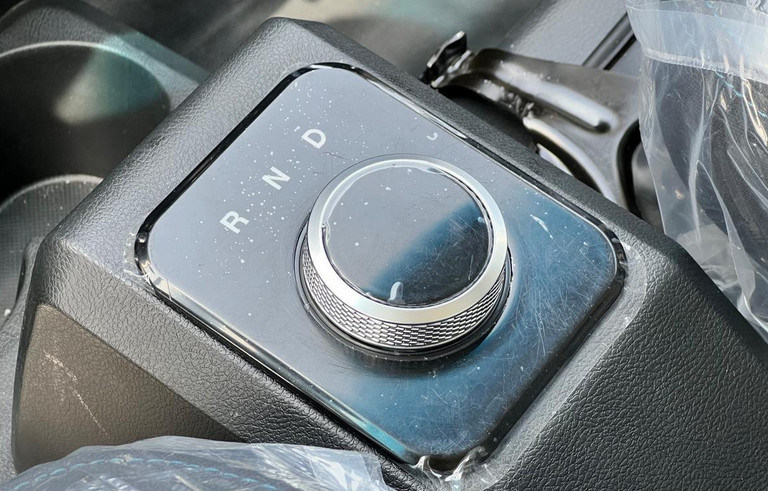

Shifting mode |
Shift lever |
— |
— |
— |
||||
electronic knob |
● |
● |
● |
|||||
Tyre |
Tyre specification |
185R14LT 8PR |
185R14LT 8PR |
185R14LT 8PR |
||||
Rim material |
steel |
steel |
steel |
|||||
Number of tires |
4 |
4 |
4 |
|||||
Spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
○(185R14LT8PR) |
|||||
Shaft head plug |
○ (front and rear wheels) |
○ (front and rear wheels) |
○ (front and rear wheels) |
|||||
Door configuration |
Car door |
Side door form |
— |
Right side single opening, optional double opening |
— |
|||
Tailgate form |
Breast board |
Door to door |
Door to door |
|||||
Safety configuration |
Safety air bag |
Driver/co-driver |
—/— |
—/— |
—/— |
|||
Safety belt |
Ordinary three-point safety belt |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
||||
Adjustable seat belt height |
Driver -/co-driver - |
Driver -/co-driver - |
Driver -/co-driver - |
|||||
Reminder of safety belt not fastened |
Driver ●/co-driver - |
Driver ●/co-driver - |
Driver ●/co-driver - |
|||||
Central locking |
Front door central locking |
● |
● |
● |
||||
Side door central locking |
— |
— |
— |
|||||
Tailgate central locking |
— |
— |
— |
|||||
Automatic locking |
— |
— |
— |
|||||
Radar/image |
Front parking radar |
— |
— |
— |
||||
Rear reversing radar |
● |
● |
● |
|||||
Reversing video image |
— |
— |
— |
|||||
Blind zone monitoring |
— |
— |
— |
|||||
Key |
Mechanical key |
● |
● |
● |
||||
Remote control key |
● |
● |
● |
|||||
Shroud |
— |
○ |
○ |
|||||
Departure reminder |
Driver ● |
Driver ● |
Driver ● |
|||||
Door ajar reminder |
● (except for rear door opening) |
● (except for rear door opening) |
● (except for rear door opening) |
|||||
Low speed alarm |
● |
● |
● |
|||||
Remote monitoring |
● |
● |
● |
|||||
ABS anti-lock |
● |
● |
● |
|||||
Brake force distribution |
● |
● |
● |
|||||
Tire pressure monitoring device |
— |
— |
— |
|||||
Fatigue driving tips |
— |
— |
— |
|||||
Lane departure warning system |
— |
— |
— |
|||||
External configuration |
Front bumper |
● |
● |
● |
||||
Front grille |
● |
● |
● |
|||||
Outer knob |
Front door exterior handle |
Black |
Black |
Black |
||||
Front door interior handle |
Black |
Black |
Black |
|||||
Mudguard |
Front/rear fender |
●/● |
●/● |
●/● |
||||
Reflective sticker |
|
● |
● |
● |
||||
Internal configuration |
Steering wheel |
Steering wheel material |
PU foaming |
PU foaming |
PU foaming |
|||
Steering wheel adjustment (manual) |
— |
— |
— |
|||||
Multi-function steering wheel |
— |
— |
— |
|||||
Combination instrument |
Trip computer display |
— |
— |
— |
||||
Mechanical combination instrument |
● |
● |
● |
|||||
All LCD combination instrument |
— |
— |
— |
|||||
Cruise |
Cruise control |
— |
— |
— |
||||
Adaptive cruise |
— |
— |
— |
|||||
Instrument panel |
Glove box |
● |
● |
● |
||||
Ashtray |
● |
● |
● |
|||||
Cigarette lighter base (12V power supply) |
● |
● |
● |
|||||
Cup-holder |
● |
● |
● |
|||||
220V power supply |
— |
— |
— |
|||||
Interior trim panel |
A-pillar guard |
● |
● |
● |
||||
B-pillar upper guard |
— |
— |
— |
|||||
Lower guard board of B-pillar |
● |
● |
● |
|||||
Rear wall (between cab and cargo compartment) |
● |
● |
● |
|||||
Sun visor (without vanity mirror) |
Driver ●/co-driver- |
Driver ●/co-driver- |
Driver ●/co-driver- |
|||||
Ceiling handle |
— |
— |
— |
|||||
A/B column boarding handle |
— |
— |
— |
|||||
Backplane tool box |
— |
— |
— |
|||||
Tachograph |
— |
— |
— |
|||||
ETC |
○ |
○ |
○ |
|||||
Emergency hammer |
— |
— |
— |
|||||
Fire Extinguisher |
— |
— |
— |
|||||
Fire extinguishing device |
— |
— |
— |
|||||
Triangle warning board |
● |
● |
● |
|||||
Reflective Vest |
● |
● |
● |
|||||
On-board tools |
● |
● |
● |
|||||
Lifting jack |
● |
● |
● |
|||||

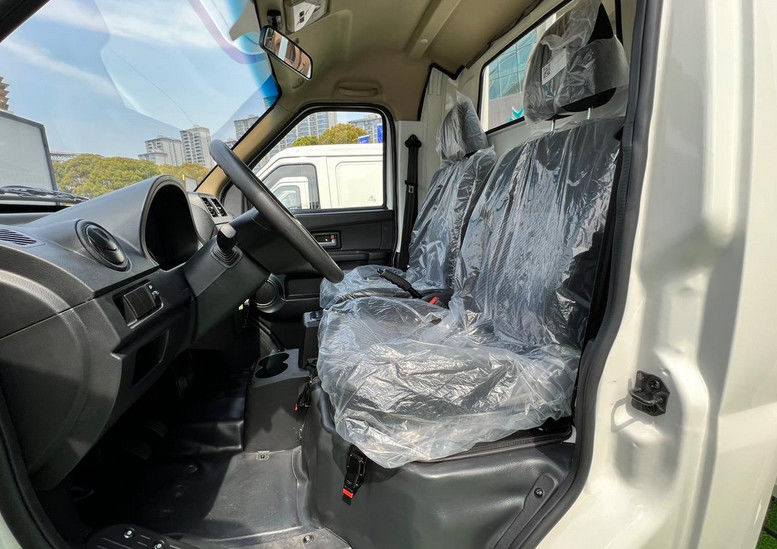

Seats |
Seat material |
Knitting |
Knitting |
Knitting |
||||
Seat fore and aft adjustment |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
|||||
Seat height adjustment |
Driver -/co-driver - |
Driver -/co-driver - |
Driver -/co-driver - |
|||||
Backrest adjustment |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
|||||
Upper and lower adjustable head restraints |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
Driver ●/co-driver ● |
|||||
Multi-media configuration |
CD/DVD player |
— |
— |
— |
||||
AM/FM |
● |
● |
● |
|||||
MP3 |
● |
● |
● |
|||||
USB |
● (With the function of charging and playing music in USB) |
● (With the function of charging and playing music in USB) |
● (With the function of charging and playing music in USB) |
|||||
Number of speakers |
2 |
2 |
2 |
|||||
Lamps |
High beam |
LED |
LED |
LED |
||||
Low beam |
LED |
LED |
LED |
|||||
Front fog lamp |
— |
— |
— |
|||||
Rear fog lamp |
● |
● |
● |
|||||
Daytime running light |
— |
— |
— |
|||||
Cab ceiling lamp |
● |
● |
● |
|||||
Cargo compartment ceiling lamp |
● |
● |
● |
|||||
License plate lamp |
● |
● |
● |
|||||
Side turn lamp |
● |
● |
● |
|||||
Headlamp height adjustment |
● |
● |
● |
|||||
Cornering auxiliary lighting |
— |
— |
— |
|||||
High-mounted brake lamp |
● |
● |
● |
|||||
Glass/Rearview mirror |
Car window |
Power window |
● |
● |
● |
|||
One-button up/down function |
— |
— |
— |
|||||
Glass/rearview mirror |
Middle ordinary glass |
Blind window |
Blind window |
Blind window |
||||
Rear ordinary glass |
Blind window |
Blind window |
Blind window |
|||||
Interior rearview mirror (type) |
● (I) |
● (I) |
● (I) |
|||||
Exterior rearview mirror (type) |
● (III) Manual adjustment |
● (III) Manual adjustment |
● (III) Manual adjustment |
|||||
Front wiper |
Boned front wiper |
● |
● |
● |
||||
Air conditioning system |
Front row |
Manual air conditioner |
● |
● |
● |
|||
Automatic air conditioner |
— |
— |
— |
|||||
Warm wind |
● |
● |
● |
|||||
Back row |
Independent air conditioner |
— |
— |
— |
||||
Rear seat air outlet |
— |
— |
— |
|||||
Others |
On-board OBD system |
● |
● |
● |
||||
Remote locking function |
● |
● |
● |
|||||
Remarks: |
● equipped ○: Optional —: Not equipped |
SW01 is equipped with lithium iron phosphate battery provided by Lishen Power and Yiwei Lithium Energy, of which the power of Lishen Power version is 41.6kWh, the operating range is 220km, the power of Yiwei Lithium Energy version is 41.86kWh, and the operating range is 220km. The motor is equipped with a permanent magnet synchronous motor, with a peak power of 60kW, a rated power of 30kW, and a maximum speed of 80km/h.
In addition, the SW01 series can be based on a second class chassis and derive multiple products with different configurations such as flat panels, warehouse grilles, and box trucks. It can fully meet the diverse needs of market users and be applied to various logistics scenarios such as daily necessities, decoration and building materials, and supermarket delivery.
