Place of Origin:
China
Brand Name:
New Gonow
Model Number:
HM02-Flatbed truck
New Gonow 9 m³ EV Pickup Truck Delivery Micro Light truck Mileage ≥190
Product Configuration
EV Pickup Truck |
Flatbed truck |
Cargo Box |
Chassis Truck |
|||||
Basic parameters |
Overall dimensions(mm) |
5460×1770×2130 |
5415×1770×2590 |
5445×1770×2605 |
||||
Container size(mm) |
3180×1680×360 |
3150×1680×1720 |
3180×1680×360 |
|||||
Wheel base(mm) |
3400 |
3400 |
3400 |
|||||
Curb weight (kg) |
1600 |
1730 |
1620, 1660 |
|||||
Total mass (kg) |
3150 |
3150 |
3150 |
|||||
Rated load mass (kg) |
1420 |
1290 |
1400,1360 |
|||||
Seats |
2 |
2 |
2 |
|||||
1km maximum speed (km/h) |
95 |
95 |
95 |
|||||
30min maximum stable speed (km/h) |
90 |
90 |
90 |
|||||
Maximum gradient |
20% |
20% |
20% |
|||||
Endurance mileage (under Chinese conditions) (km) |
≥190 |
≥190 |
≥190 |
|||||
Cargo box volume (m3) |
/ |
≥9m³ |
≥9m³ |
|||||
|
Container material |
Steel |
Steel |
Steel |
||||
|
Body type |
Non integral body |
Non integral body |
Non integral body |
||||
New energy system |
Battery |
Battery type |
Lithium iron phosphate |
Lithium iron phosphate |
Lithium iron phosphate |
|||
Battery brand |
Hengtian |
Hengtian |
Hengtian |
|||||
Total battery energy (kWh) |
41.93 |
41.93 |
41.93 |
|||||
Battery density (Wh/kg) |
≥135 |
≥135 |
≥135 |
|||||
Battery cooling mode |
Natural cooling |
Natural cooling |
Natural cooling |
|||||
Electric heating |
● |
● |
● |
|||||
Drive motor |
Motor brand |
Oswell |
LINCONTROL |
Oswell |
LINCONTROL |
Oswell |
LINCONTROL |
|
Motor type |
Permanent magnet synchronization |
Permanent magnet synchronization |
Permanent magnet synchronization |
|||||
Motor rated/peak power (kW) |
30/60 |
35/70 |
30/60 |
35/70 |
30/60 |
35/70 |
||
Peak torque (N.m) |
220 |
230 |
220 |
230 |
220 |
230 |
||
Motor cooling mode |
Liquid cooling |
Liquid cooling |
Liquid cooling |
|||||
VCU |
VCU brand |
HICONICS |
LINCONTROL |
HICONICS |
LINCONTROL |
HICONICS |
LINCONTROL |
|
Charging mode |
Quick charge |
● |
● |
● |
||||
Slow charge |
● |
● |
● |
|||||
Slow charging gun |
○ |
○ |
○ |
|||||
Charging time (h) |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h |
Fast charging 0.8h (80%), slow charging 13h |
|||||
Chassis system |
Driving form |
Rear-Wheel Drive |
Rear-Wheel Drive |
Rear-Wheel Drive |
||||
Steering system |
Power steering |
EPS |
EPS |
EPS |
||||
Suspension system |
Front suspension |
McPherson independent suspension |
McPherson independent suspension |
McPherson independent suspension |
||||
Rear suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
Leaf spring dependent suspension |
|||||
Braking system |
Front brake type |
Disc |
Disc |
Disc |
||||
Rear brake type |
Drum |
Drum |
Drum |
|||||
Braking mode |
Hydraulic brake |
Hydraulic brake |
Hydraulic brake |
|||||
Parking brake type |
Handbrake |
Handbrake |
Handbrake |
|||||
Shift form |
Gear lever |
— |
— |
— |
||||
Electronic knob |
● |
● |
● |
|||||
Tyre |
Tyre specifications |
195R14C 8PR |
195R14C 8PR |
195R14C 8PR |
||||
Rim material |
Steel |
Steel |
Steel |
|||||
Wheel hub cover (4 wheels) |
— |
— |
— |
|||||
Number of Tyres |
4 |
4 |
4 |
|||||
spare tire |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
○(185R14LT 8PR) |
|||||
Door configuration |
Door |
Number of doors |
2 |
2 |
2 |
|||
Cargo box |
Side door |
/ |
Right single opening, Optional Double opening |
/ |
||||
tailgate |
Single opening from top to bottom |
Door to door |
Door to door |

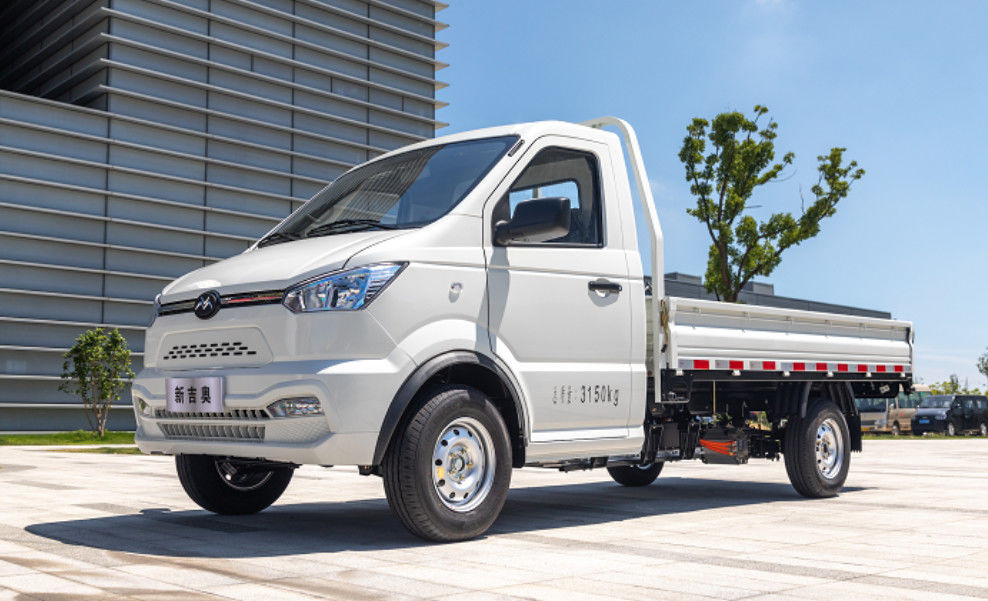

Appearance
The front face of HM02 has clear layers, with a silver chrome trim in the middle that connects the headlights on both sides directly to the logo. The headlights are designed in a triangular shape, which is very sharp; Below is a closed front grille, with fog lights on both sides and a row of small air intakes at the bottom, which is beneficial for bottom battery heat dissipation during vehicle operation; The waistline design that runs through the body on the side and cleverly combines with the front of the car, highlighting the overall coherence of the vehicle. The design sense is strong, and it can be said that the Shuaijian has achieved the unity of design aesthetics and practical aesthetics.

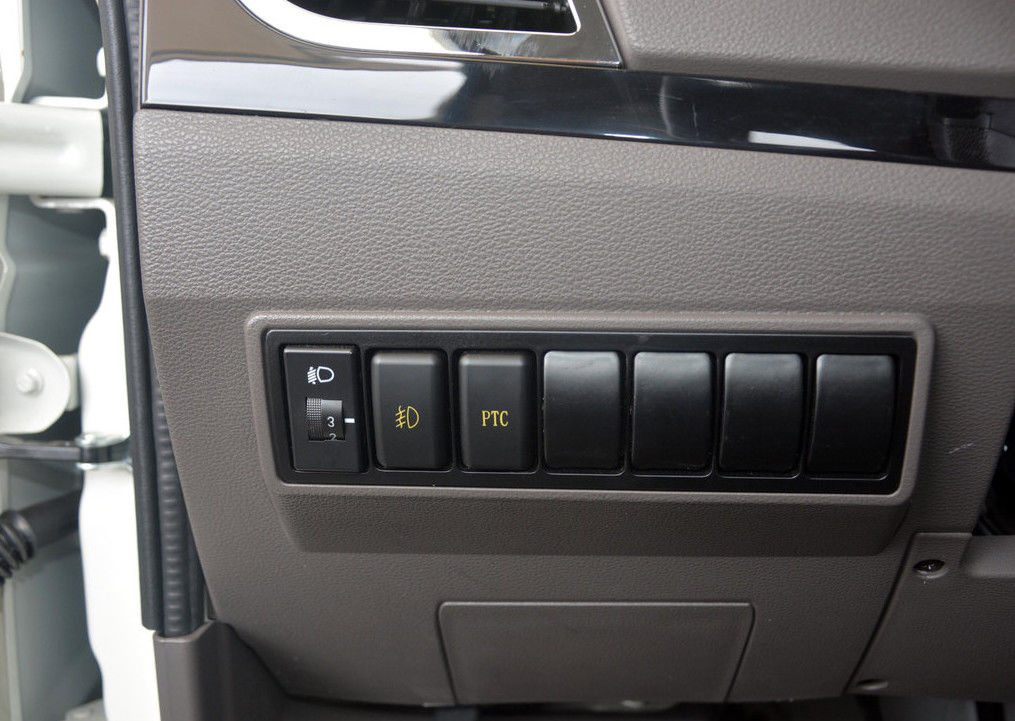

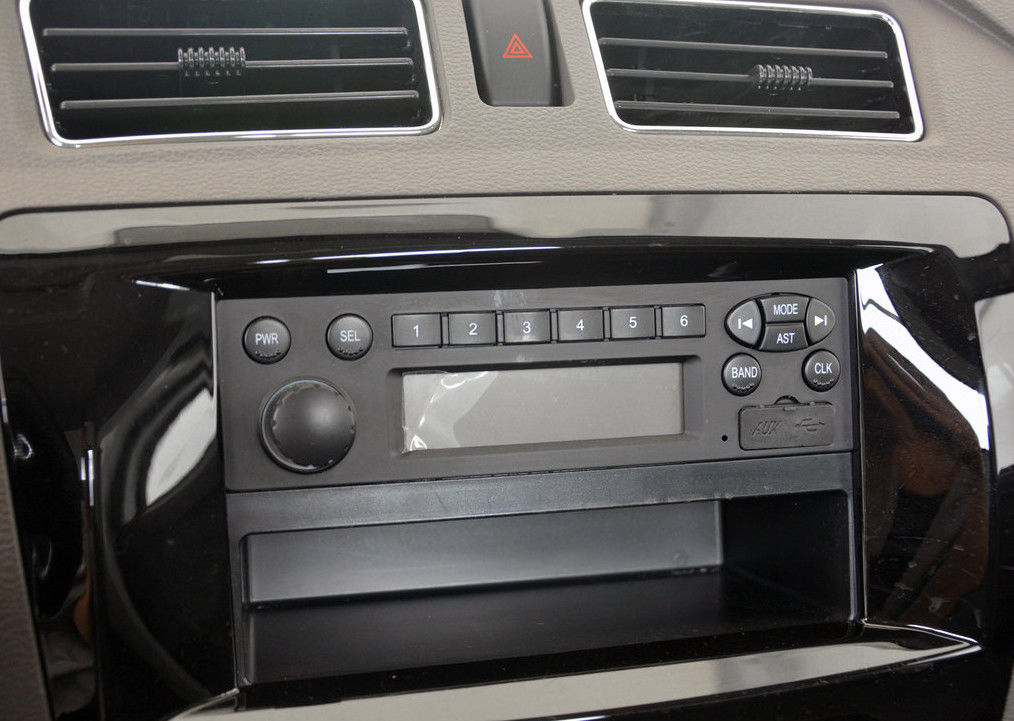

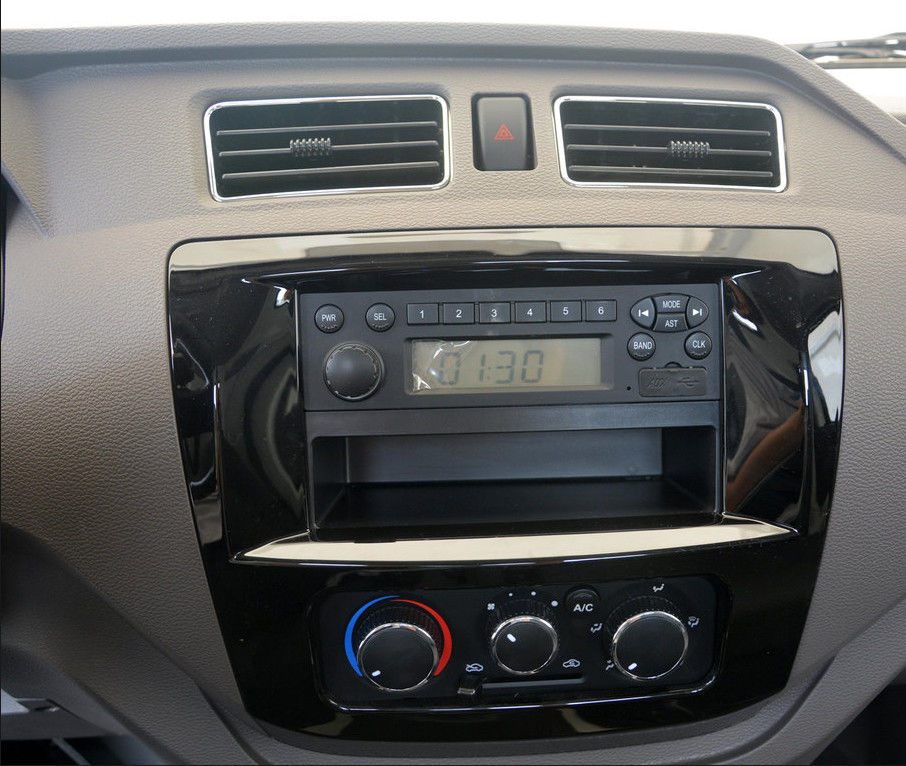

Interior

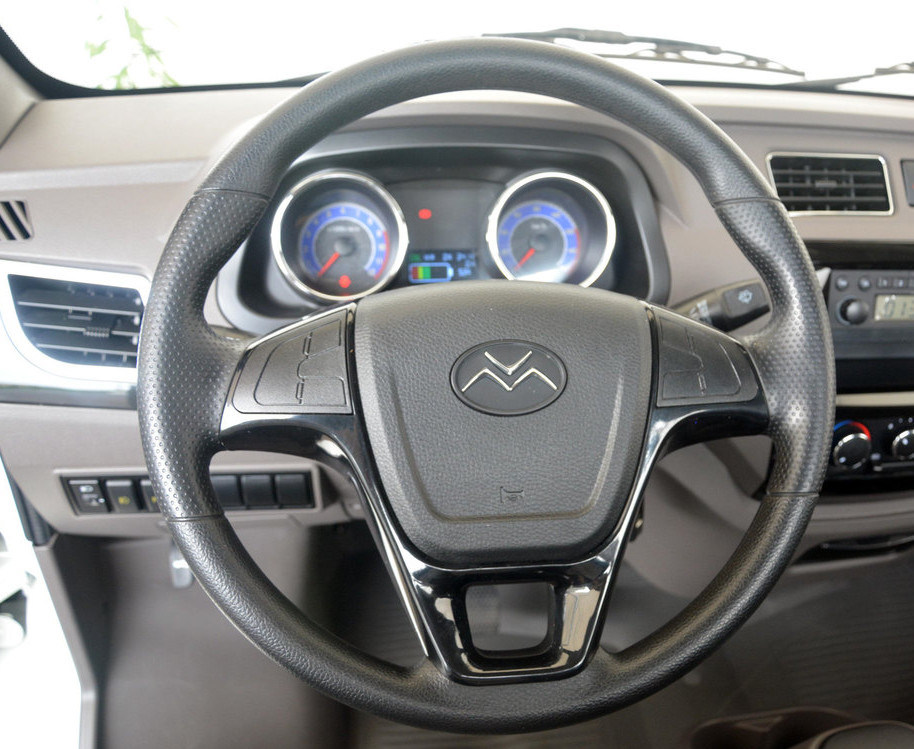

The cabin space of HM02 is spacious, with a design that showcases the quality of the product. The three spoke steering wheel, dual barrel LCD instrument panel, and gear lever shift are all available. In addition, the seats are filled with thick and high-quality materials, highlighting the humanistic care for drivers and passengers.
Power
In terms of power, HM02 is equipped with a permanent magnet synchronous motor system, with a rated power of up to 70kW, a maximum torque of 230N·m, a maximum climbing slope of 20 °, and a maximum speed of 95km/h, which can effectively reduce vehicle energy consumption and improve power performance. The handsome ship is equipped with 41.93kW·h lithium iron phosphate battery, and its endurance mileage reaches 190km.
