Place of Origin:
China
Brand Name:
REVERY
Model Number:
R3S-gasoline

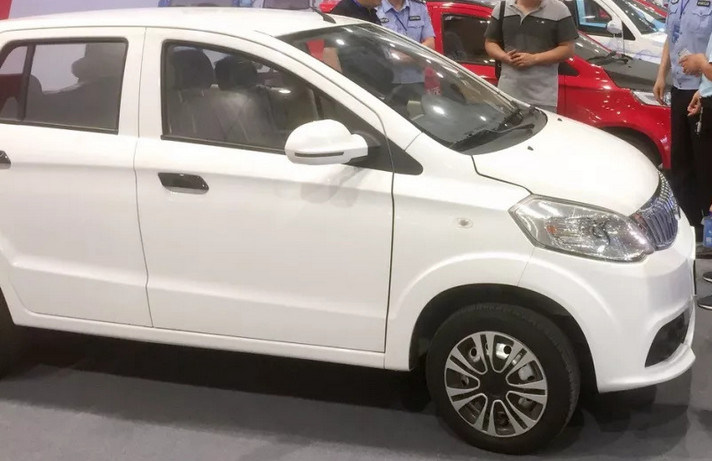

5 Seats Petrol Hatchback 105kmh MT AT Euro Standard Four Wheeler Vehicle
Configurations:
|
Basic parameters |
Basic parameters |
|
Seats |
5 |
|
Driving side |
Left hand & Right Hand |
|
LxWxH |
3460*1560*1470 mm |
|
Curb weight |
695kg (Manual transmission) |
|
710kg (Automatic transmission) |
|
|
Performance parameter |
Performance parameter |
|
Mileage(NEDC) (Km) |
600 |
|
Max speed |
≤105km/h |
|
Max gradient |
≥20% |
|
Maximum turning radius |
≤5.0m |
|
Wheel base |
2260mm |
|
Front tread |
1360mm |
|
Rear tread |
1360mm |
|
Min ground clearance |
130mm |
|
Body parameter |
Body parameter |
|
Front suspension |
McPherson independent suspension |
|
Rear suspension |
Longitudinal arm type with lateral stinger non-semi-independent rear suspension |
|
Tire size |
155/65 R13, LHD steel wheel, RHD aluminum wheel |
|
Driving mode |
Front engine front drive |
|
Braking system |
Front disc rear drum |
|
Steering system |
EPS Electric power steering |
|
Engine |
Parameters |
|
Type |
SOHC & EFI |
|
Emission standard |
Euro I - Euro IV |
|
Number of cylinders |
3 |
|
Displacement |
796cc |
|
Fuel tank capacity |
30L |
|
Bore & Stroke |
68.5X72 |
|
Maximum Output (kw/rpm) |
39.56(29.5KW)/5500 |
|
Maximum torque (N.m/rpm) |
60.5/3500-4500 |
|
Compression ratio |
9.4 |
|
Air Intake type |
Natural inspiration |
|
Drive Fuel |
Gasoline |
|
Type of oil supply |
Multi-Point Electronic Fuel Injection |
|
Fuel type / No. # |
Gasoline / 92# |
|
Transmission |
Parameters |
|
Gearbox |
368AMT transmission (five speed manual /automatic integrated) |
|
Configuration |
Configuration |
|
Central door lock |
● |
|
Remote key |
● |
|
Carpet |
Pet needle punched carpet |
|
Windshield wiper |
● |
|
Multimedia 10 inch display |
● |
|
Four door electric window regulator |
● |
|
Imitation leather steering wheel |
● |
|
Power-assisted steering |
● |
|
Inverter air conditioner |
● |
|
Front sun visor |
● |
|
ISOFIX device for child seat |
● |
|
Manual adjustment of driver's seat and passenger's seat |
● |
|
Front seats 3 point safety belts |
● |
|
Rear seats 3 point safety belts |
● |
|
Rear seats foldable |
● |
|
Driver safety belt unfasten alarm |
● |
|
Rear doors children safety lock |
● |
|
Split front headrest (adjustable up and down) |
● |
|
ABS anti-lock |
● |
|
12V stand-by power |
● |
|
Split fixed wind tail |
● |
|
Luggage rack trim |
● |
|
Halogen headlights |
● |
|
LED combined tail lights |
● |
|
LED high position braking lights |
● |
|
Front anti collision beam |
● |
|
Rear anti collision beam |
● |
|
Front roof lights |
● |
|
Rear fog lights |
● |
|
Plate lights |
● |
|
Electric horn |
● |
|
External SD + USB interface |
● |
|
Front roof antenna |
● |
|
Tweeter and woofer 4 speakers |
● |
|
Exterior door handle (body color) |
● |
|
Pedestrian warning sound |
● |
|
Cool and hot air conditioner |
● |
|
Interactive Multimedia |
Multimedia screen (7 inch) DVD+ reversing image (Chinese and English) |
|
Headlight dimmer switch |
● |
