Place of Origin:
China
Brand Name:
REVERY
Model Number:
R3S-gasoline
Right Steering Petrol Hatchback R3S 796cc Gasoline 4 Wheel Euro Displacement Vehicle
Configuration table:
|
BASIC DATA |
PARAMETERS |
|
LxWxH(mm) |
3460*1560*1470 mm |
|
Wheel base(mm) |
2260 |
|
Front tread(mm) |
1360 |
|
Rear tread(mm) |
1360 |
|
Min ground clearance(mm) |
130 |
|
Seats |
5 |
|
Driving Type |
Left hand / Right Hand optional |
|
Curb weight(Kg) |
695 (MT version) |
|
710 (AT version) |
|
|
Front suspension |
Macpherson independent suspension |
|
Rear suspension |
Longitudinal arm type with lateral stinger non-semi-independent rear suspension |
|
Rim size(inch) |
13 |
|
Rim material |
Aluminum or Steel optional |
|
Tire size |
155/65 R13 |
|
Driving mode |
Front engine front drive |
|
Braking system |
Front disc rear drum |
|
Steering system |
Electric Power Steering |
|
POWER TRAIN |
PARAMETERS |
|
Engine type |
SOHC & EFI |
|
Emission standard |
Euro IV |
|
Number of cylinders |
3 |
|
Displacement(cc) |
796cc |
|
Fuel tank capacity(L) |
30 |
|
Bore & Stroke |
68.5X72 |
|
Maximum Output (kw/rpm) |
29.5@5500 |
|
Maximum torque (N.m/rpm) |
60.5@3500-4500 |
|
Compression ratio |
9.4 |
|
Air Intake type |
Naturally Aspirated |
|
Fuel type |
92# Gasoline |
|
Type of oil supply |
Multi-Point Electronic Fuel Injection |
|
Gearbox |
5-speed MT or 4-speed AMT |
|
PERFORMANCE |
|
|
NEDC Condition Mileage(Km) |
600 |
|
Max speed(km/h) |
≤105 |
|
Max gradient(%) |
≥20 |
|
Maximum turning radius(m) |
≤5.0 |

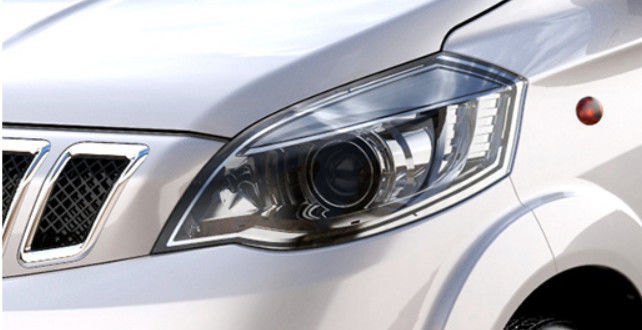

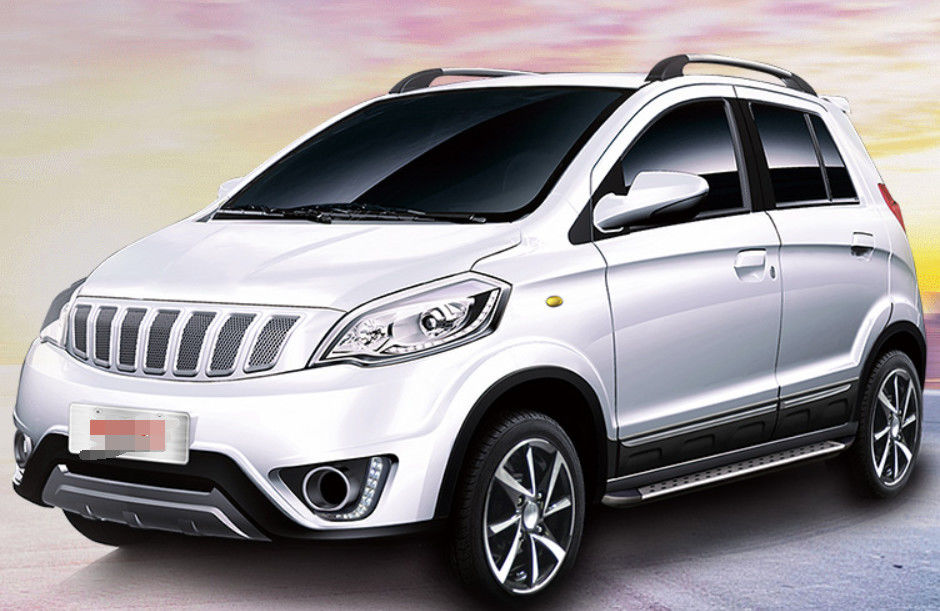

The front of the car adopts the iconic seven hole chrome plated matrix design, creating a domineering feeling of an SUV.
The side adopts a double waistline design, giving the body a full sense of layering on the side.

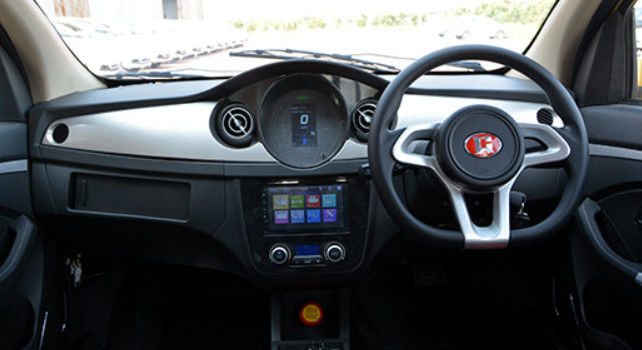

New peach wood interior with fighter jet style air vents, beautiful and smooth lines.
Brushed armrest box with shiny silver horn edging, exquisite to every detail.
The R3S is equipped with a 7-inch large screen, highlighting the beauty of symmetry. The new bumper design fully showcases the SUV style, while also equipped with digital display of vehicle speed, voltage, motor speed, and automatic fault detection by the driving computer.
It is sold well in Southeast Asian and other countries.
